Does anyone have a drawing of the drive rollers in a 35mm film processor? They are usually white and have soft touch tires.

[Jack Tu]

I am designing a film cleaner. I looked at designs from several big companies and found that in addition to installing the PTR, a drive roller is also necessary. I am looking for something like the white rollers in the picture.

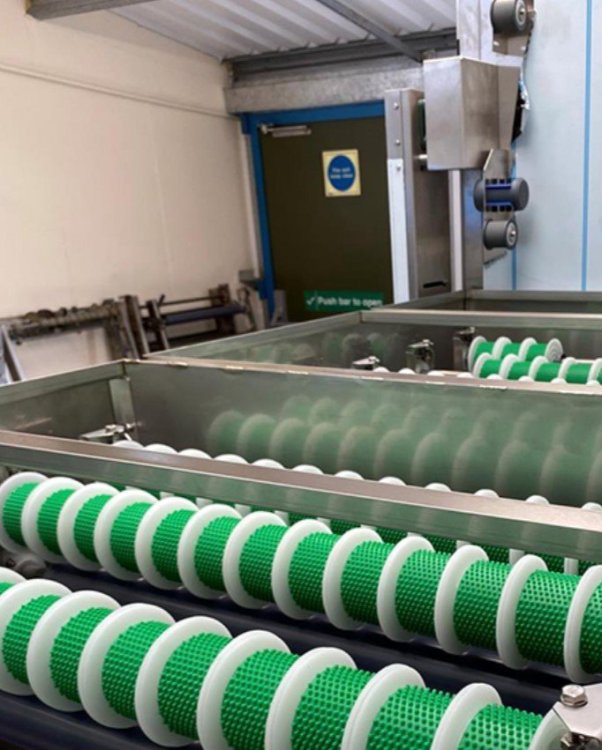

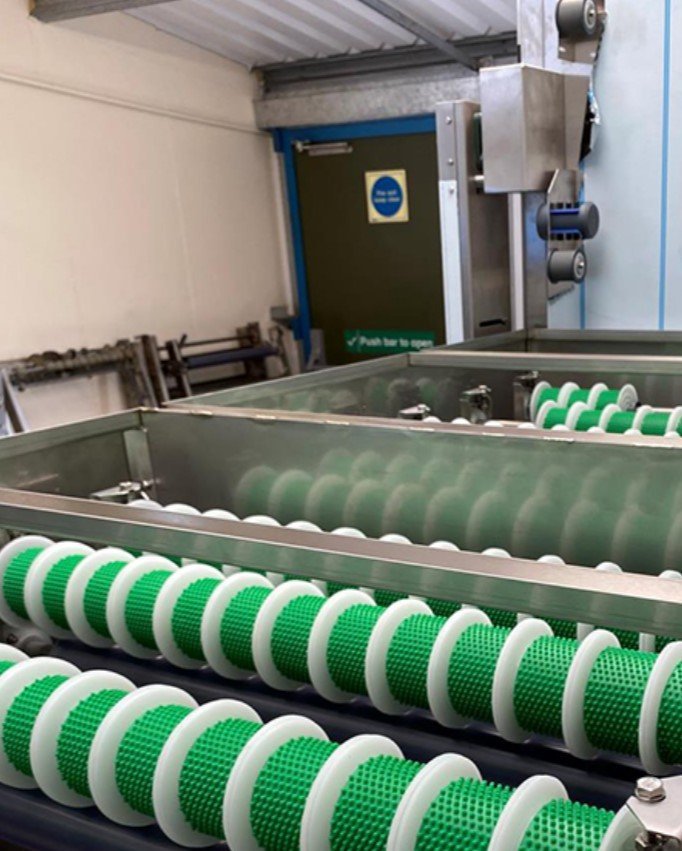

Image from Photomec's film processor (fair use)



I have found a supplier of soft touch tires. As for the design of the drive roller, I decided to seek help from others and refer to mature solutions for the sake of caution.

[Jack Tu]

Maybe I didn't express myself clearly, I'm looking for the roller accessory as shown in the picture.

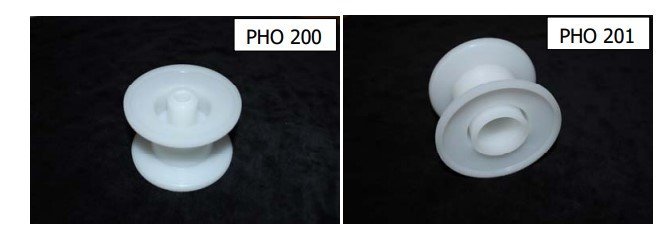

Photomec2013partscatalog（Fair Use）

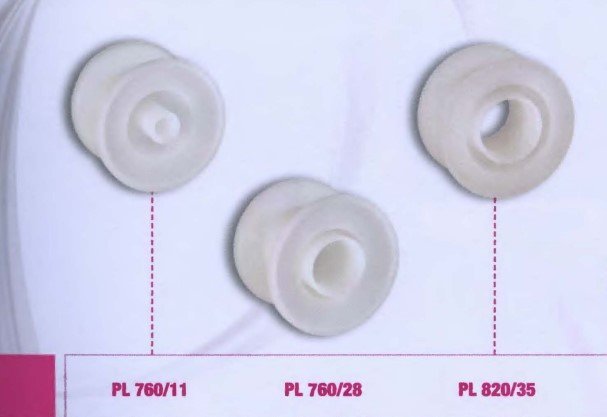

TechniformSqueegeeCatalog（Fair Use）

[John Rizzo]

Hello Jack



You can purchase rollers like the ones in your pic from Photmec in the UK. They still manufacture film processors and supply spare parts.



here is their contact info:



Photomec (London) Ltd / Automation Engineers
PLC & HMI Programming & Machine Integration

Tel: +44 (0)1727-850711
Email: dgwright@photomec.co.uk
URL: www.photomec.co.uk

[Robert Houllahan]

P-M-A also supplies rollers for Allen processors.

Each Processor manufacturer has or had slightly different roller designs.



https://www.p-m-a.com/
