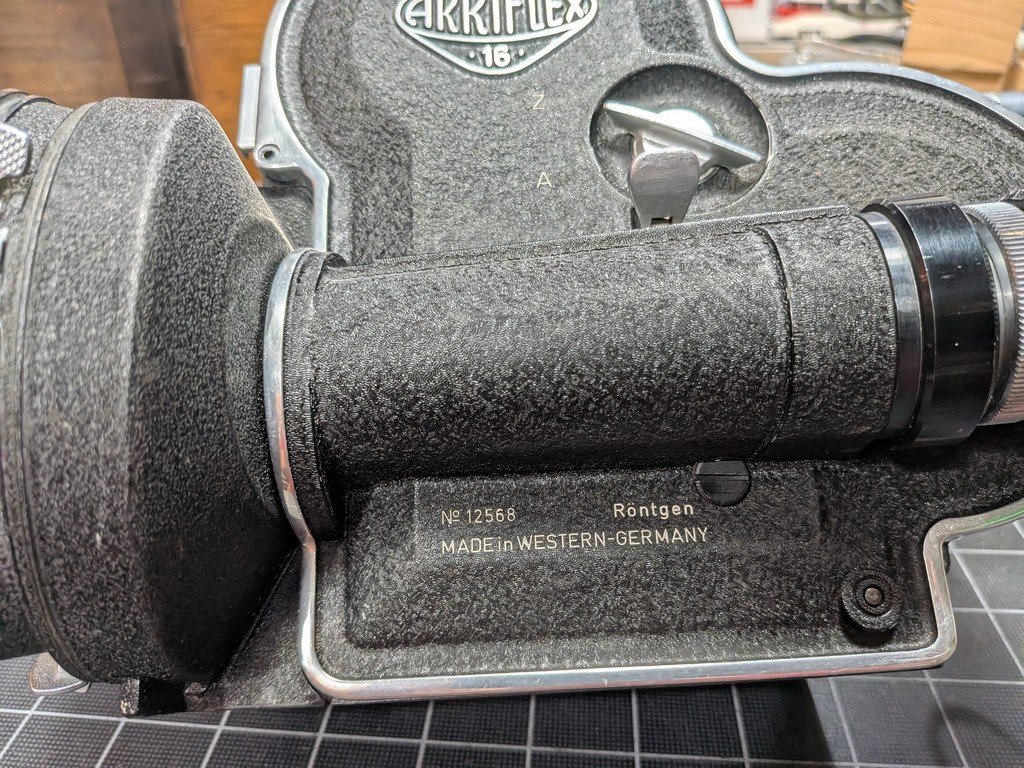

Identifying ARRI ST 'Rontgen' with odd attachment

[Sean Charlesworth]

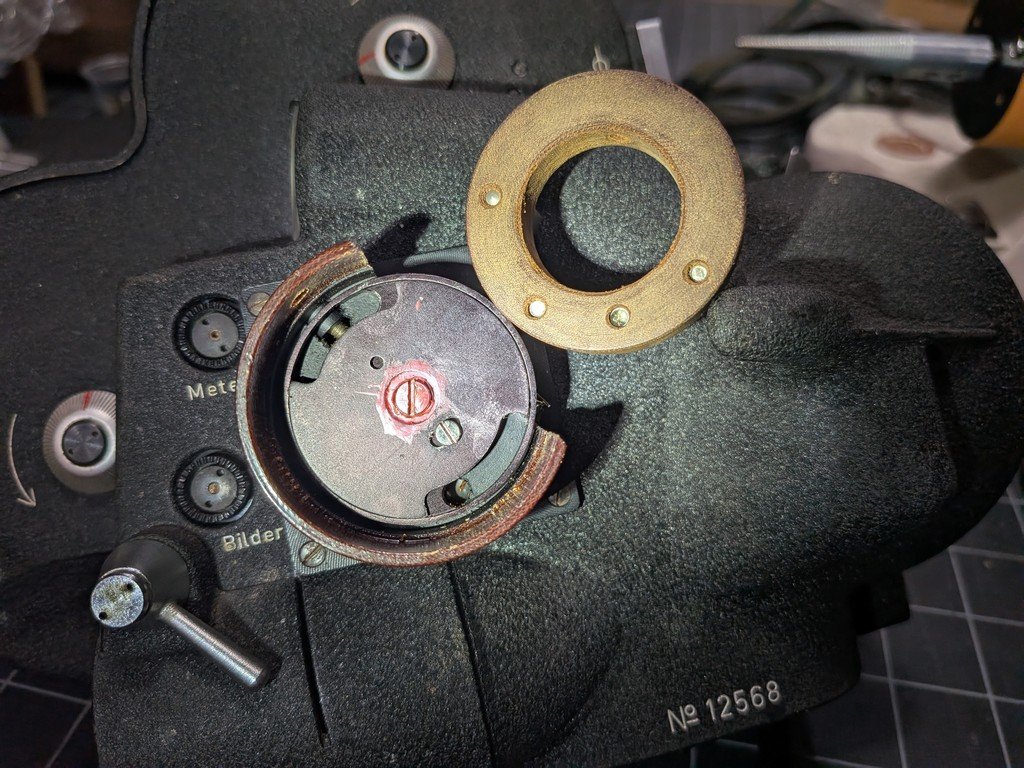

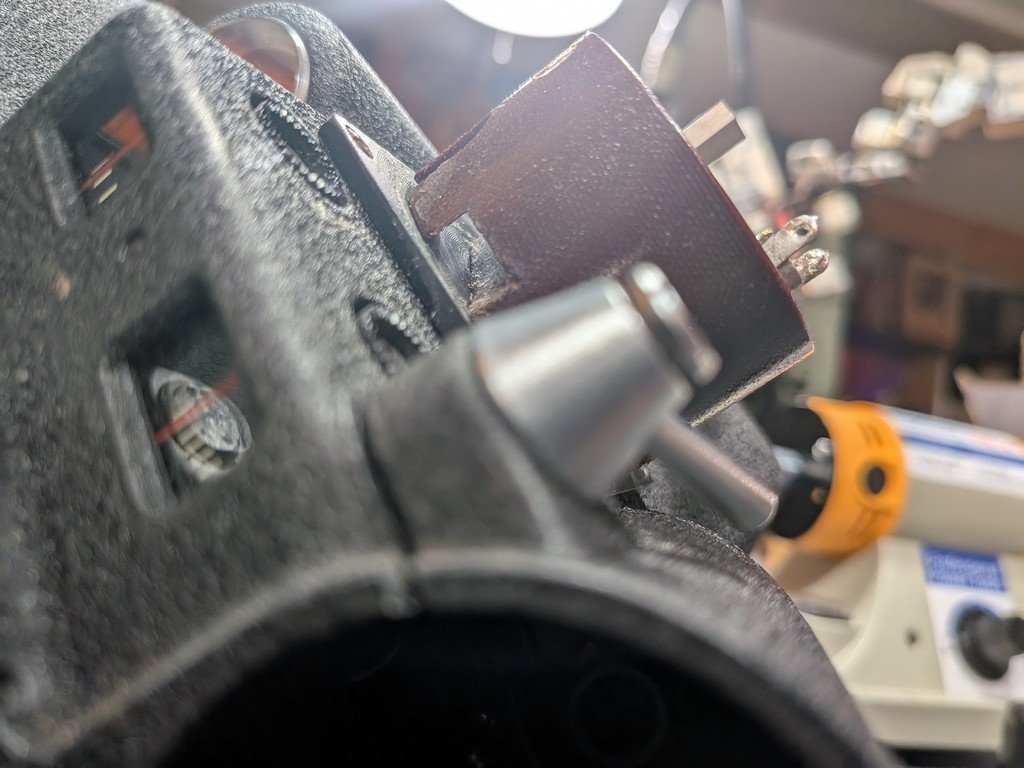

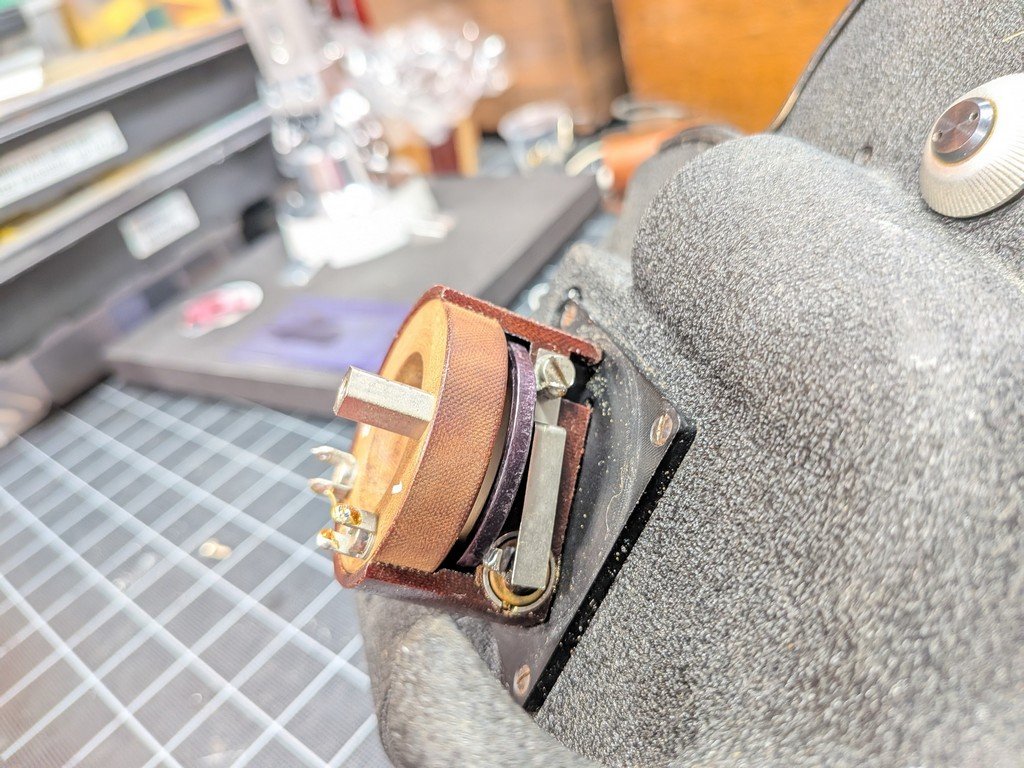

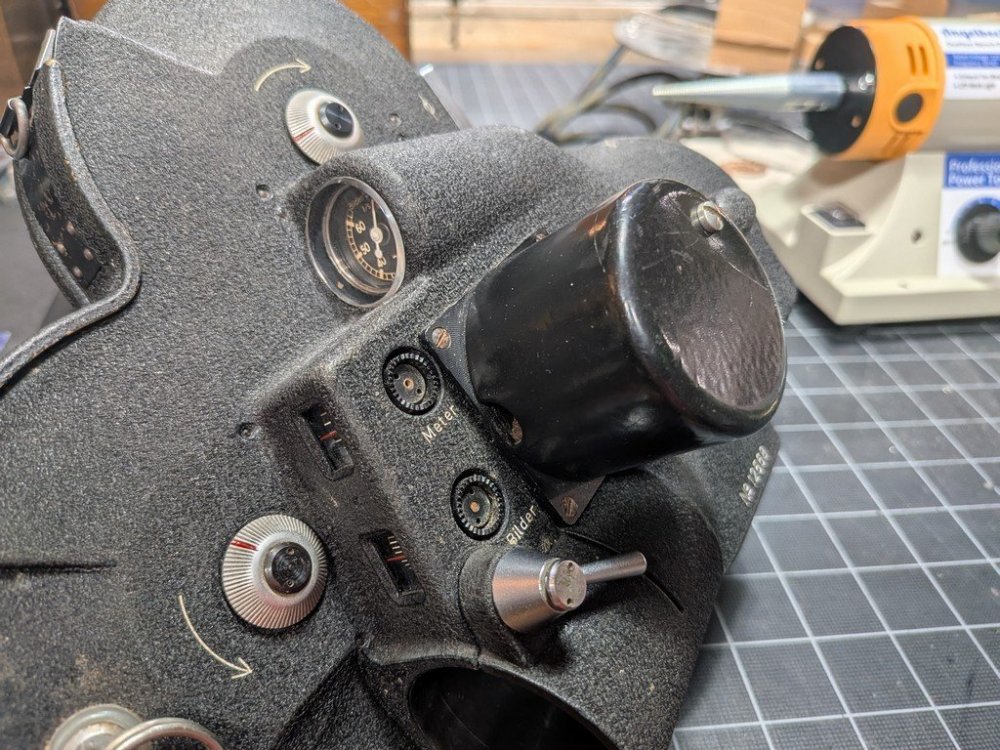

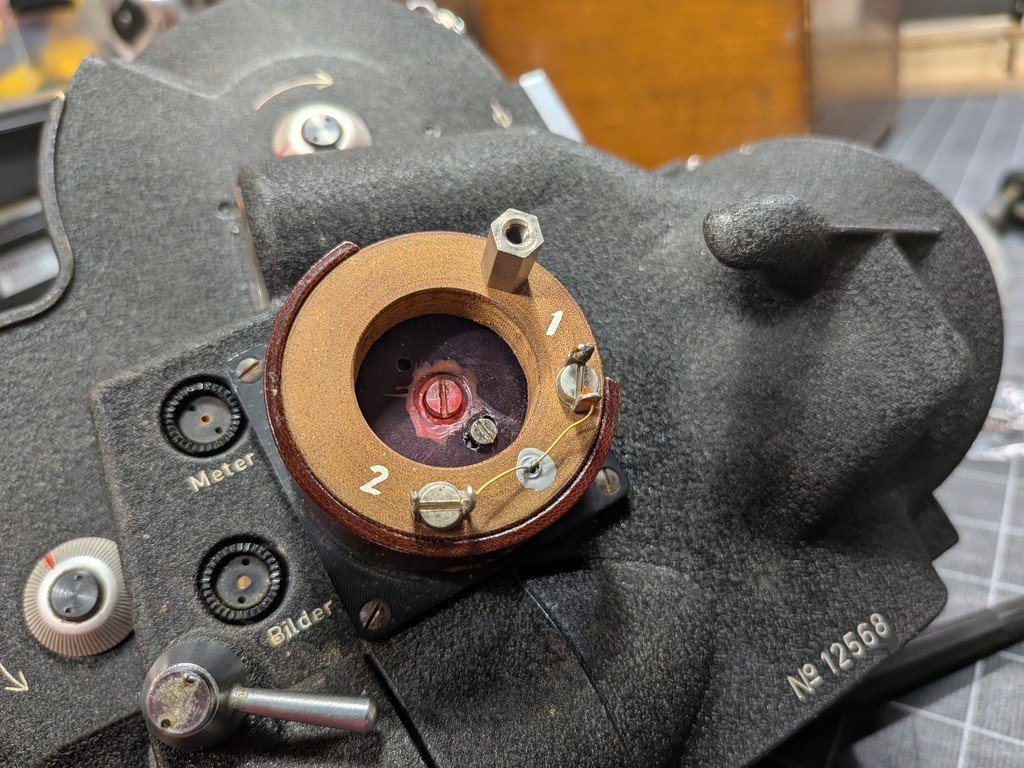

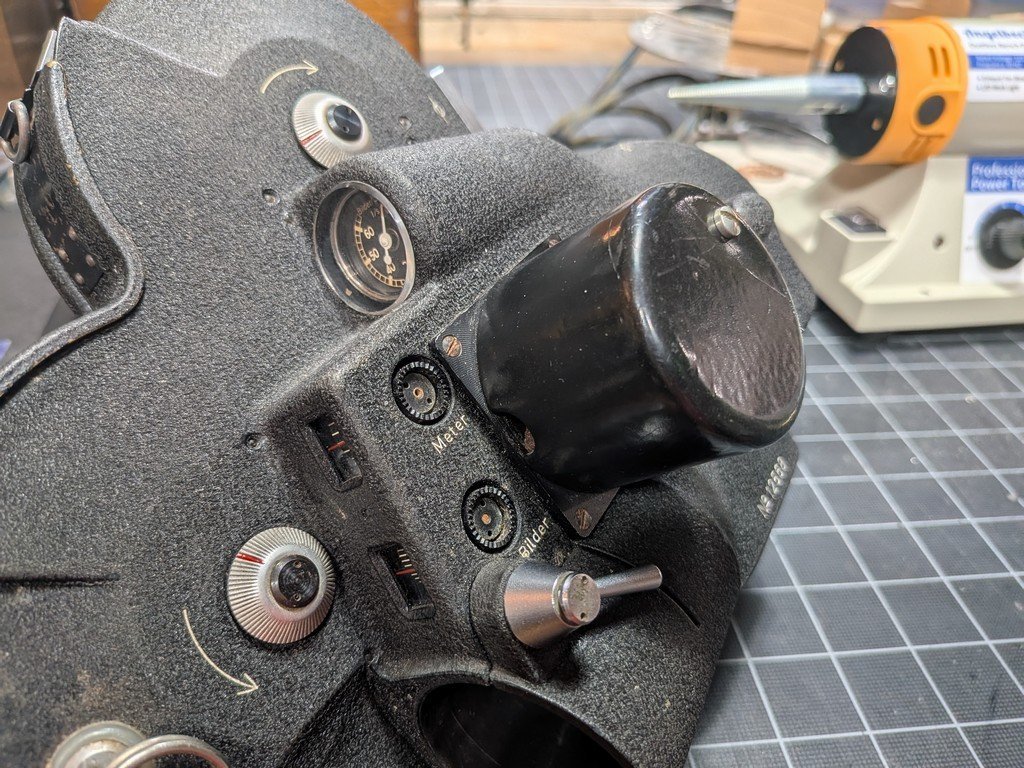

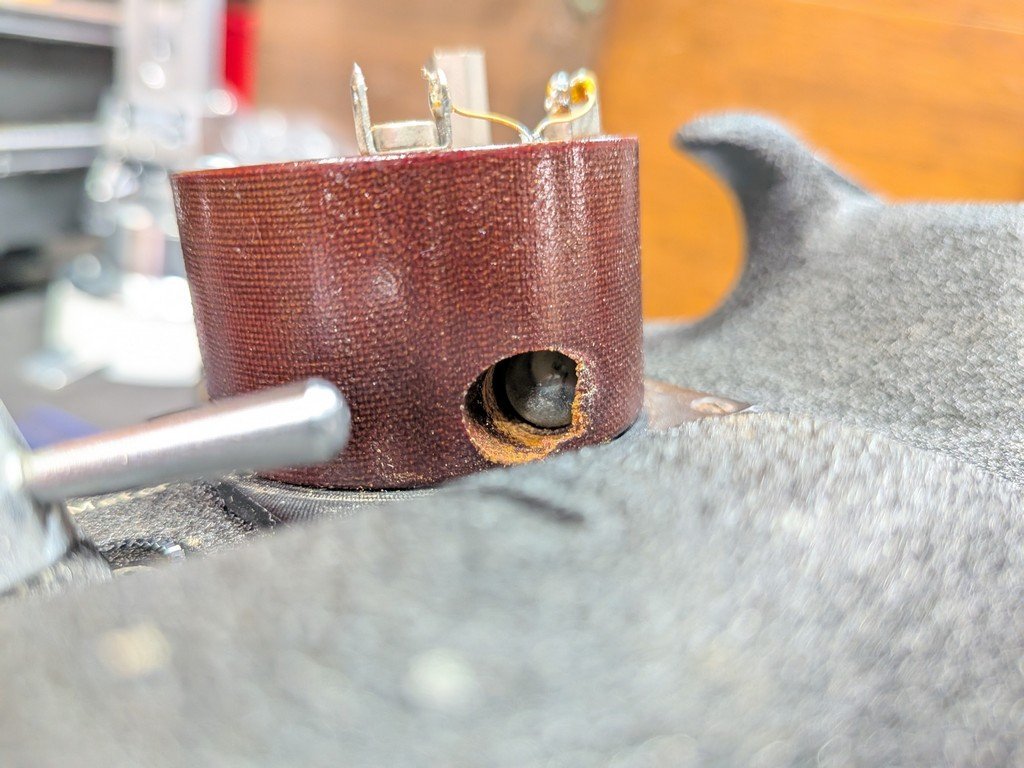

I have  an ARRI ST labeled 'Rontgen' - I know that usually  means they were for medical/scientific use. It also has an odd side attachment I have never seen. It looks a lot like a sync generator and runs off the camera transmission as well. It has a opening on outer edge that leads into a square hole in the device. It also has a lamp, spinning shutter and what looks to be some type of photoelectric? sensor in the top ring. Curious if anyone can identify this guy.

Edited June 2 by Sean Charlesworth

[Mark Dunn]

Any chance of hosting somewhere else? Imgur isn't available in the UK as it won't comply with the online safety law here.

Edited June 2 by Mark Dunn

[Fabian Schreyer]

You could just directly post these photos. Which is better anyway, because then they are stored on the forums server and do not suddenly become unavailable.

[Sean Charlesworth]

Updated with embedded files

[Joerg Polzfusz]

I only found information about the 35mm versions:

From some Arri brochure (https://www.munichimaging.de/wp-content/uploads/2020/03/Brochure_ARRI_Medical_Surgical-Imaging_German.pdf )


In der Medizintechnik war ARRI bereits 1970 tätig. Die analoge Kamera ARRITechno 35 war eine der meistverkauftesten Kameras für den OP. Sie war die erste und einzige Röntgen-Filmkamera, die in Zeitlupe bis zu 160 Bilder pro Sekunde aufnehmen konnte.

Weltweit wurden 13000 Kameras in der Angiokardiografie eingesetzt.

Translation:

ARRI had already been active in the medical technology sector as early as 1970. The ARRITechno 35 analogue camera was one of the best-selling cameras for the operating theatre. It was the first and only X-ray film camera capable of recording in slow motion at up to 160 frames per second.

A total of 13,000 cameras were used in angiocardiography worldwide.

———————

More information:

https://cinematechnic.com/arri-35iic-rontgen-medical-camera/



No clue whether the 16mm version also has been integrated into some X-ray unit and whether it was also designed to shoot at 160fps…

Edited June 3 by Joerg Polzfusz

[Fabian Schreyer]

The interesting thing is that the well known 35mm Röntgen (X-ray) versions do not have a viewfinder installed. This one has though. I can only imagine that it is a single unit that they built for a customer.

Also, for some reason the buckle witch override button is not installed on the door.

[Sean Charlesworth]

Yeah and typically they would be painted gray. The removal of buckle is odd as well. Otherwise the camera appears to be stock but will know more once I open it up.



3 hours ago, Fabian Schreyer said:

The interesting thing is that the well known 35mm Röntgen (X-ray) versions do not have a viewfinder installed. This one has though. I can only imagine that it is a single unit that they built for a customer.

Also, for some reason the buckle witch override button is not installed on the door.



5 hours ago, Joerg Polzfusz said:

I only found information about the 35mm versions:

From some Arri brochure (https://www.munichimaging.de/wp-content/uploads/2020/03/Brochure_ARRI_Medical_Surgical-Imaging_German.pdf )


In der Medizintechnik war ARRI bereits 1970 tätig. Die analoge Kamera ARRITechno 35 war eine der meistverkauftesten Kameras für den OP. Sie war die erste und einzige Röntgen-Filmkamera, die in Zeitlupe bis zu 160 Bilder pro Sekunde aufnehmen konnte.

Weltweit wurden 13000 Kameras in der Angiokardiografie eingesetzt.

Translation:

ARRI had already been active in the medical technology sector as early as 1970. The ARRITechno 35 analogue camera was one of the best-selling cameras for the operating theatre. It was the first and only X-ray film camera capable of recording in slow motion at up to 160 frames per second.

A total of 13,000 cameras were used in angiocardiography worldwide.

———————

More information:

https://cinematechnic.com/arri-35iic-rontgen-medical-camera/



No clue whether the 16mm version also has been integrated into some X-ray unit and whether it was also designed to shoot at 160fps…



Edited June 3 by Sean Charlesworth

[Joerg Polzfusz]

One question is: Is 16mm X-ray good enough for medical purposes? Or was this more for industrial purposes, e.g. X-raying goods on an assembly belt for quality checks? (120m of 16mm = more than 1400 single photos)
