Light leaks Kiev-16U

[Fredrik Blomberg]

Hello

I'm trying to restore a Kiev 16u.

Most things work well for now but I can't find all lightleaks.

I did find leaks from the hole to the pistol grip and the frame counter. After tape the quality is a lot better but not completely good.

I have tried to tape the film door and the front front to body but it dint help.

I have the original rubbereycup, can the problem be light from the viewfinder?

I'm pretty sure it is not in development because my super 8 films looks good.

Example

Regards

Fredrik

[Fredrik Blomberg]

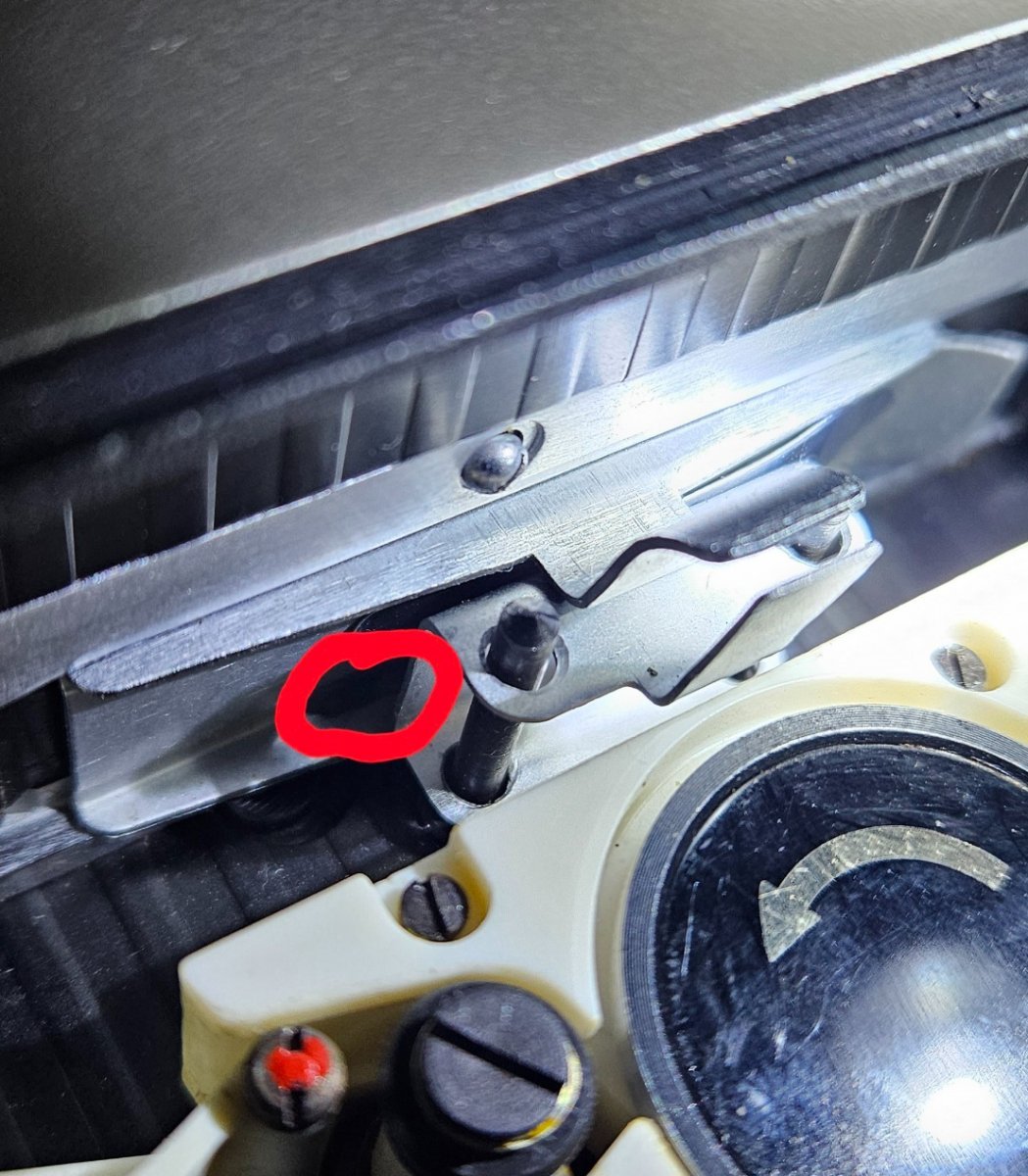

I'm rather sure it is coming from the pin registrator arm. Question is how to make it light tight. There is a flashlight in the lens.

The film is in the same angle as the photo.

https://youtu.be/uKxkLHePA2s?si=1GeyAn7xTkw3_a_d
