  1. You can see that the tungsten colored LEDs perform a good deal better throughout the range compared to the cooler side. Overall, I feel comfortable using these ribbons for film. I have used them a few times already, but the implementation has been unique. One use was a back light halo effect and the second was creating a TV glow on faces. These were not perfect color dependent uses. These ribbons and power/dimmer units do represent a good value. I have other metrics if anybody is interested. I can send the TM-30 info or spectral distribution graphics.
  2. Then on to the half output readings. This is tungsten with the dimmer dialed down to half the full output in foot candles. FYI, the knob on the dimmer is at about 3/4 full.

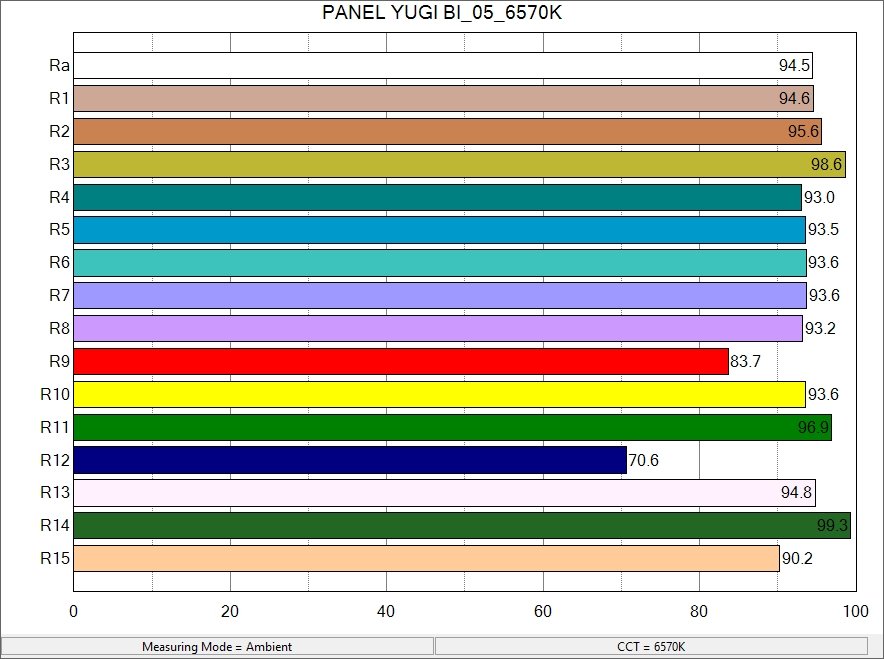

  3. Hi all! Just joined the site today so I figured I'd come out of the gates with something useful. I've been building a ribbon light kit and have purchased a few different brands of strips. The most useful ribbon will be the bi-colors so I will give you a rundown of how they perform. Yugi has a good name so I got production to buy a few reels of the BC series bi-color ribbon. I purchased 3 bi-color dimmers directly from Yugi as well. The $90 dimmers are great, as long as you aren't trying to go with a battery setup. They take an AC cable directly so there isn't a separate power supply going to a dimmer. The power supply/dimmer units have two knobs, one for dimming and one for color mixing. Yugi claims that they are flicker free to 240fps. I have tested mine to 60fps with no flicker. This dimmer is the cheapest price I could find for this functionality. The dimmer/power supply and ribbon are both 24 volt. The ribbon performs pretty well for $100. I have included screens from my Sekonic C-800 color meter to show the performance. I tested at full brightness in tungsten, daylight and mixed modes. I then did the same readings at about half brightness. I like that the LEDs cover a wide color range. Full Tungsten is at about 2700k while full daylight is around 6650k. It's a very useful range. I've also been happy with the color rendition in general and on camera everything has looked good so far. It's not perfect but great for the money. Here is the breakdown of the screenshots: Full power tungsten, then daylight then mixed followed by half output tungsten, then daylight then mixed. But first I'll lay it out in print. Full Power: Tungsten: 2720k TLCI: 98 1560fc CRI: 95.7 6643k TLCI: 95 1920FC CRI: 94 Mixed: 4477k TLCI: 98 1810FC CRI: 92.4 Dimmed half (by foot candles roughly, not based on knob position, which is more like 3/4 power) : Tungsten: 2714k TLCI: 98 738FC CRI: 95.7 Daylight: 6570k TLCI: 95 949FC CRI: 94.5 Mixed: 4438k TLCI:98 944FC CRI 92.9 It looks like I can only upload 1 image at a time. I'll do a few. this one is full power, full tungsten.
×
×
