Bolex H8 Rex 1 Tune Up

[Don H Marks]

Seems "BOLEX USA/PROCAM" no longer services Bolex. I got the response below yesterday:



Quote



Hello,
unfortunately, Bolex repairs are no longer supported at this time, sorry.

DS





[Don H Marks]

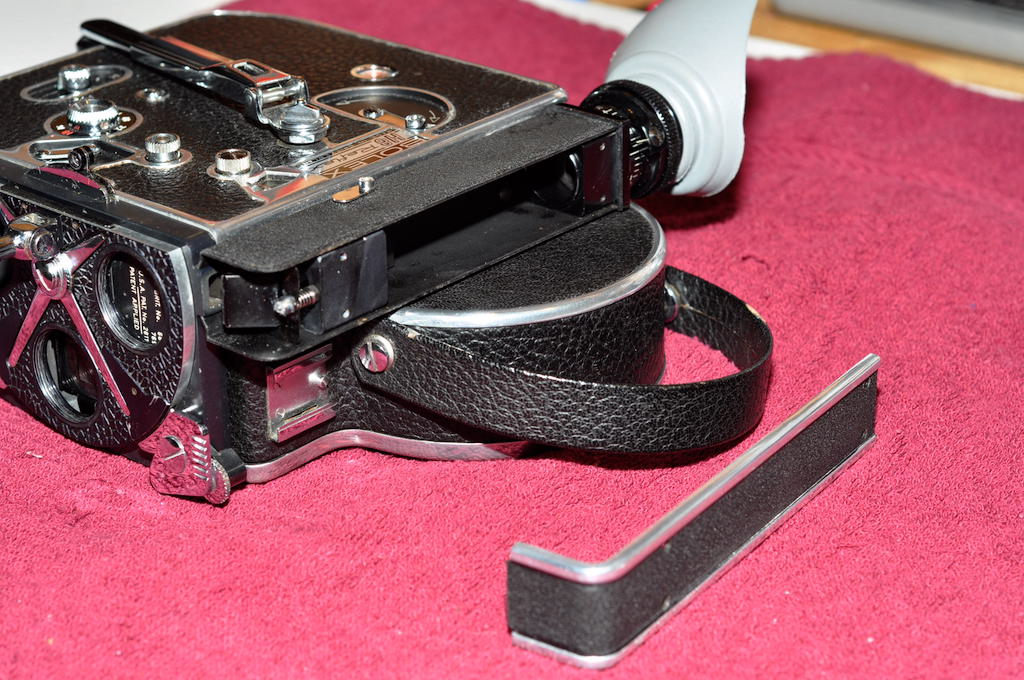

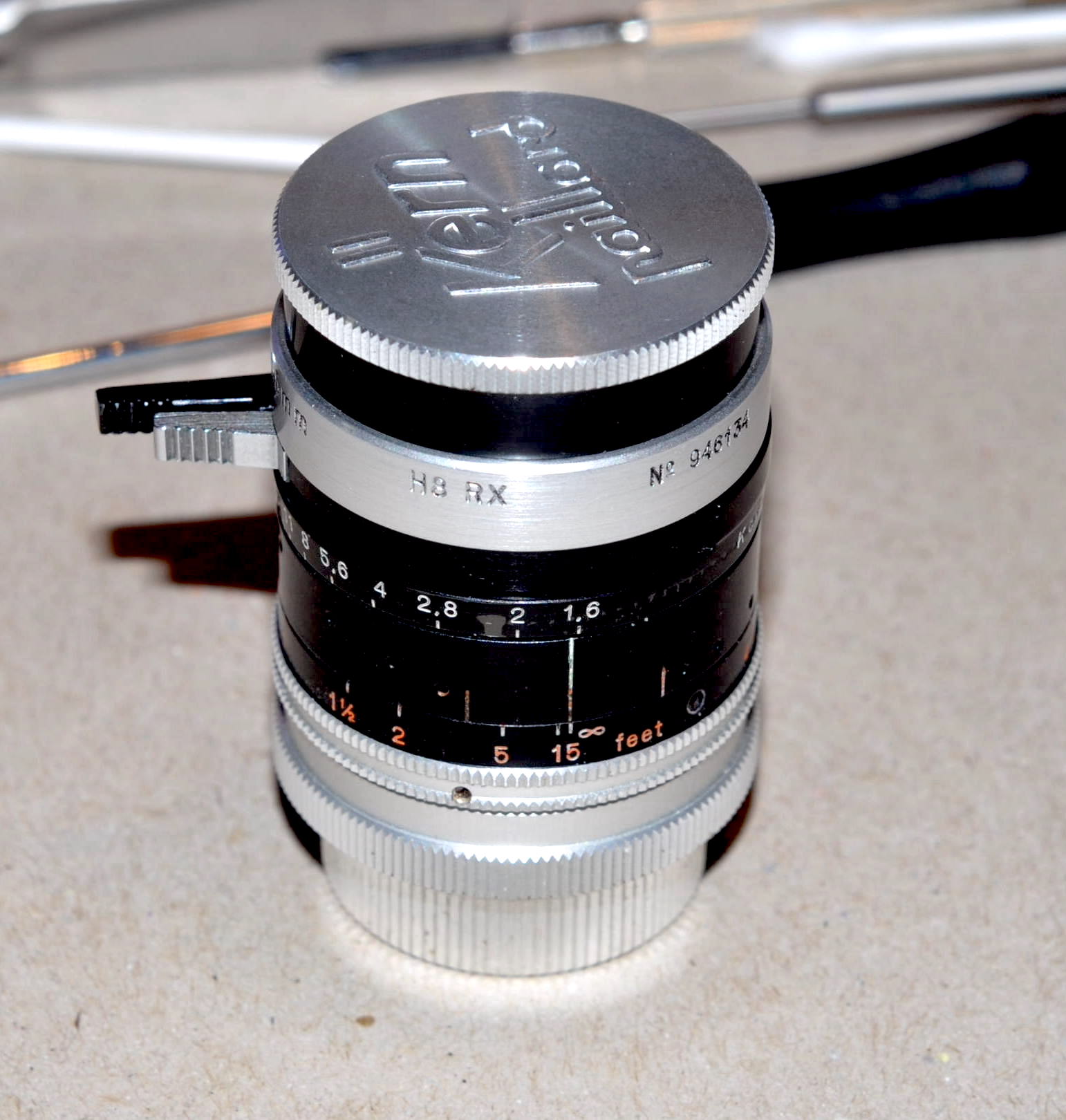

Here it is ready to be opened. Lenses are removed.

[Samuel Berger]

Be careful not to get impaled by the spring.

[Don H Marks]

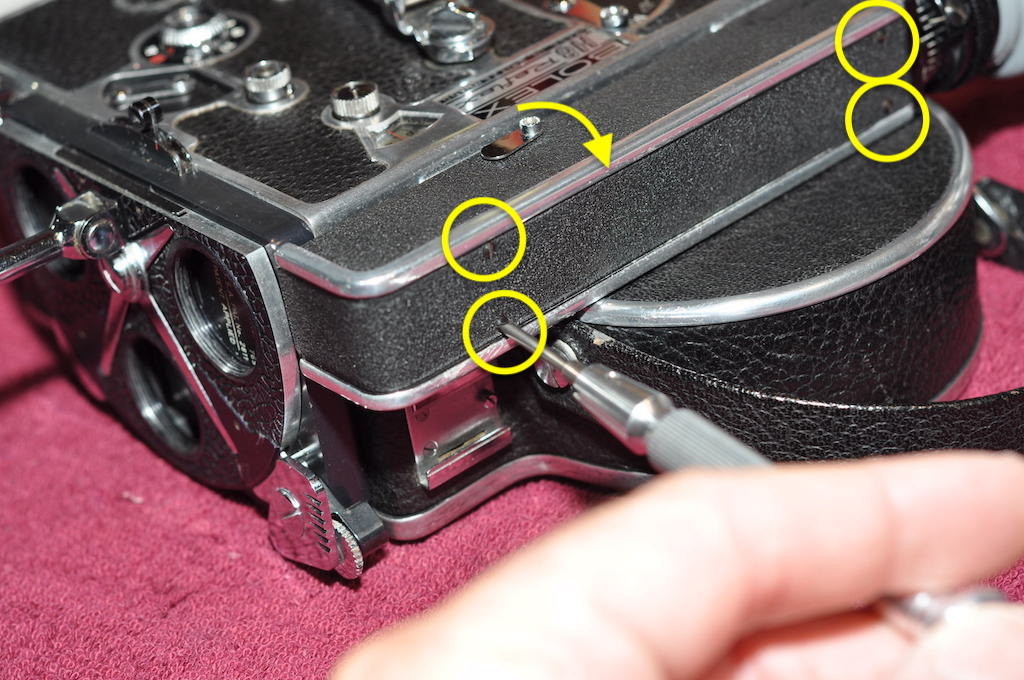

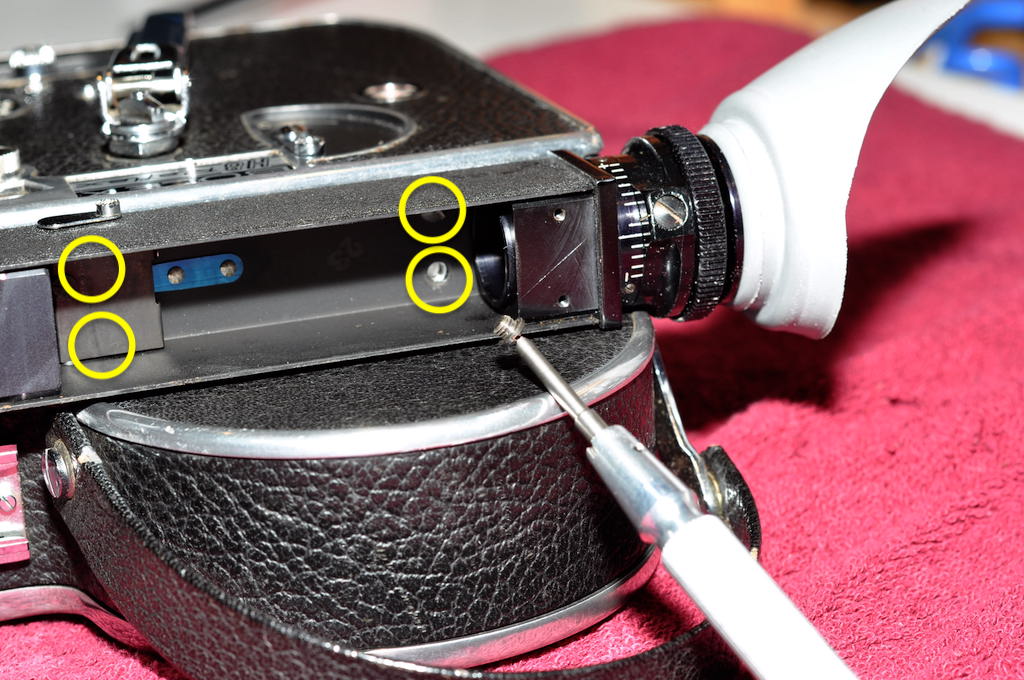

These screws need to come out:

[Don H Marks]

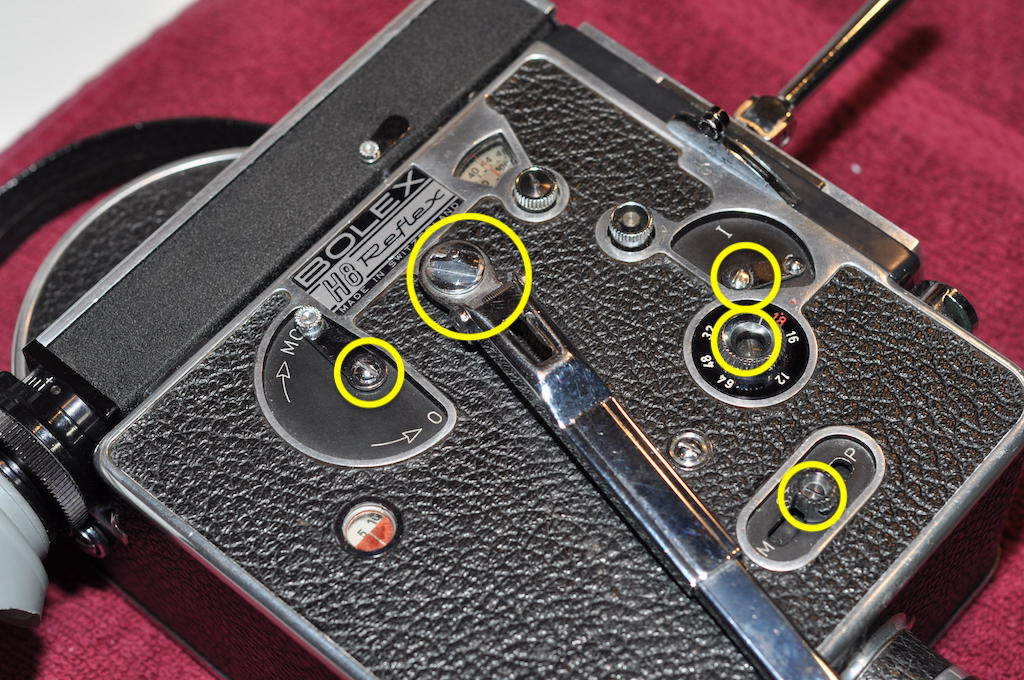

Remove the reflex finder:

[Don H Marks]

Remove the 6mm nut and the screws holding the turret.



[Don H Marks]

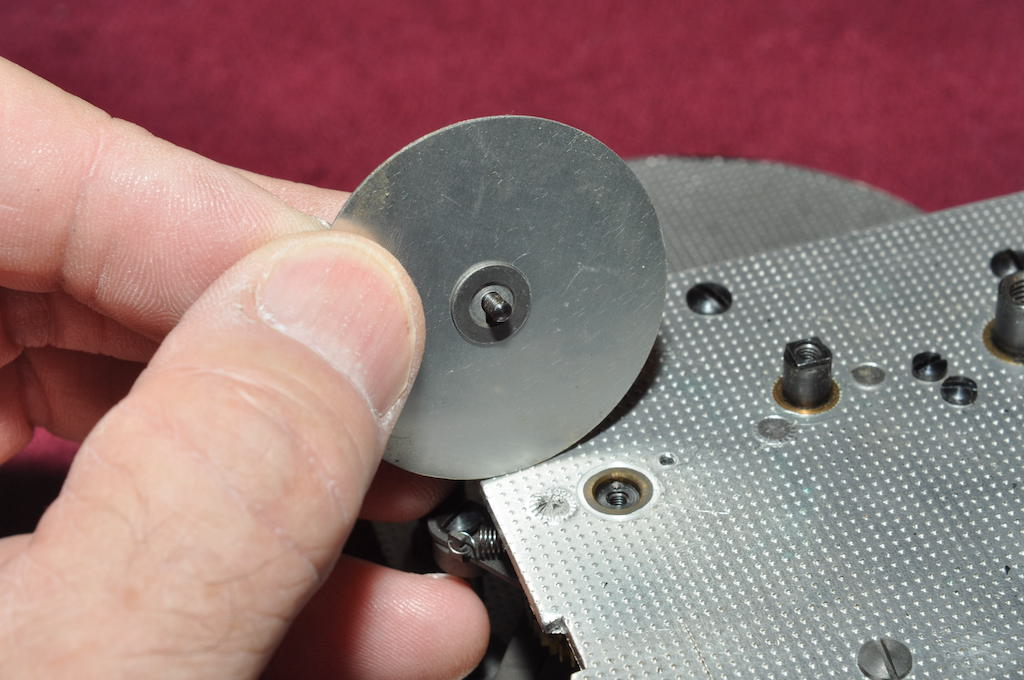

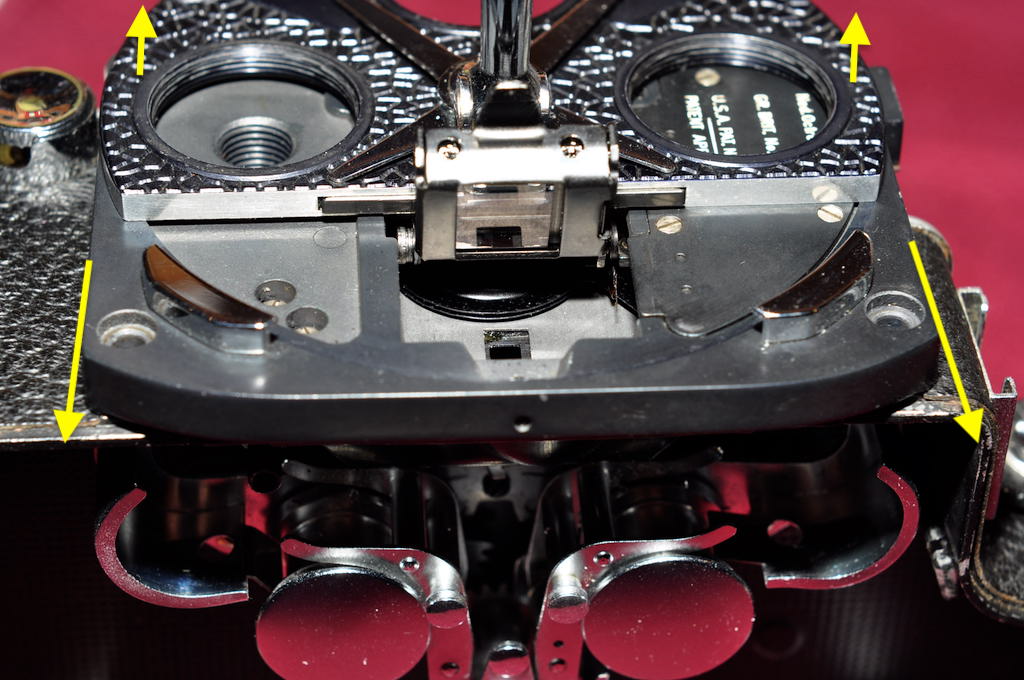

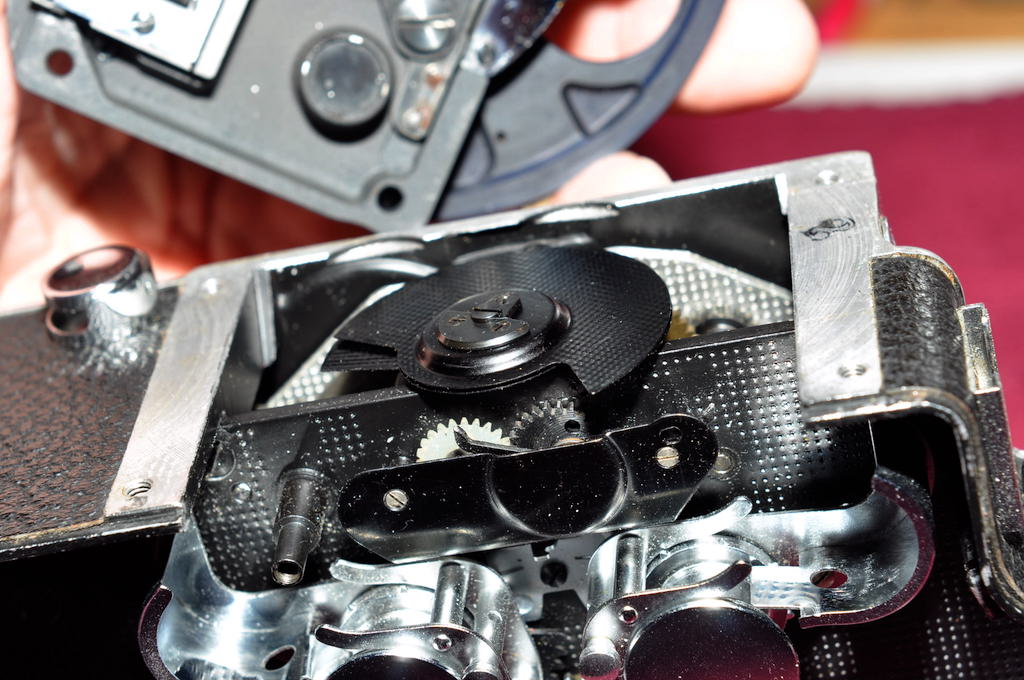

The turret slides off the shutter blades. Be careful.

[Don H Marks]

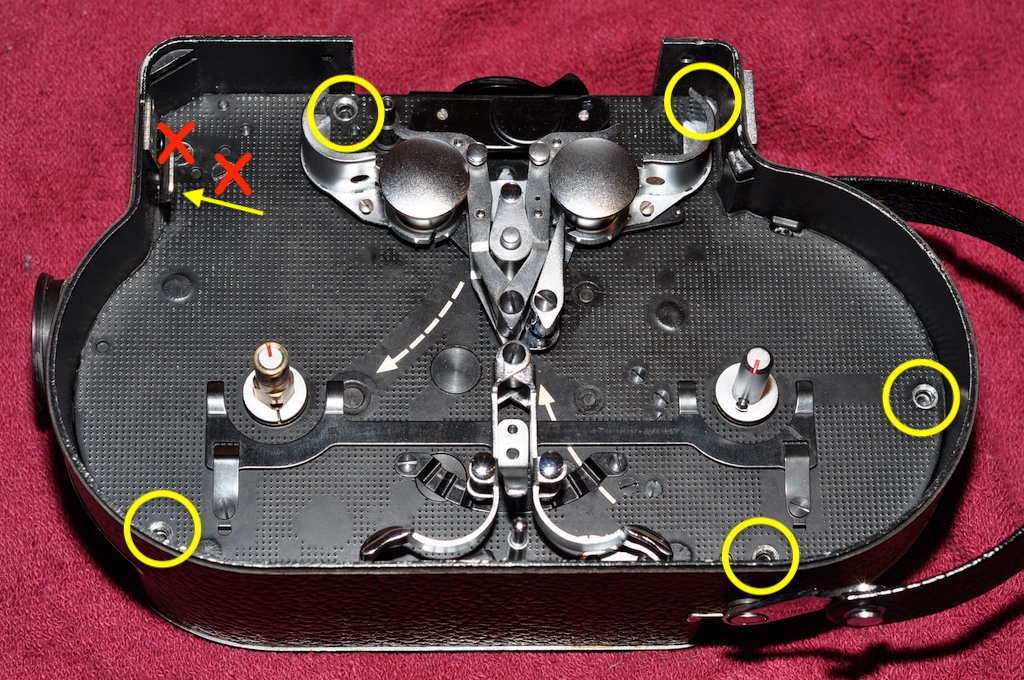

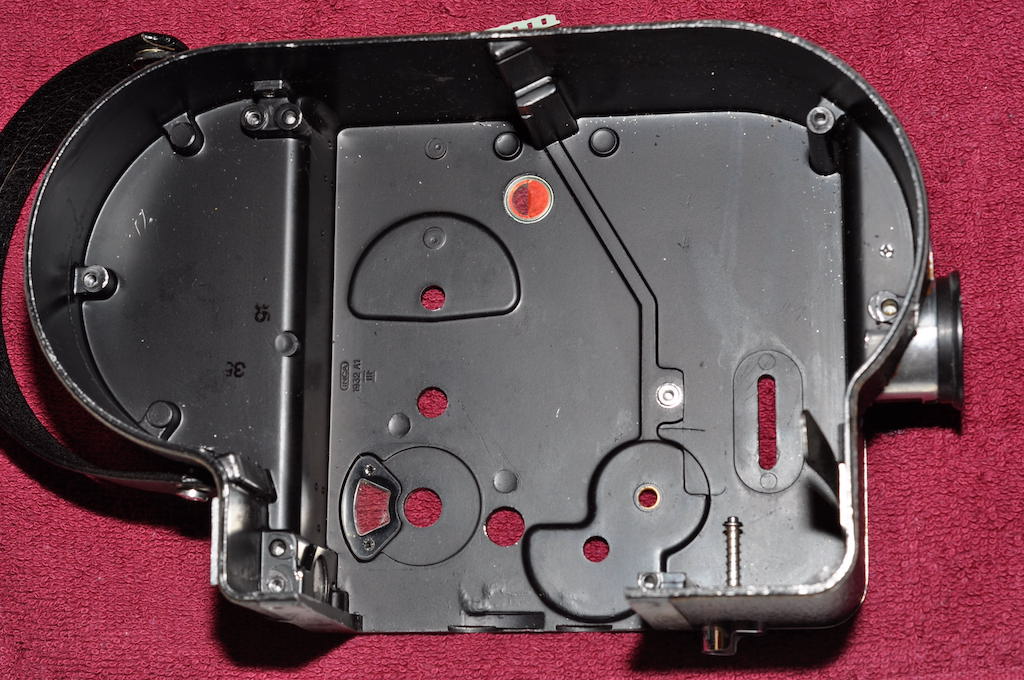

The removing these screws allows the mechamism to come out of the case. Press in the film cutter. Don't damage the film counter wheel on the way out.



[Don H Marks]

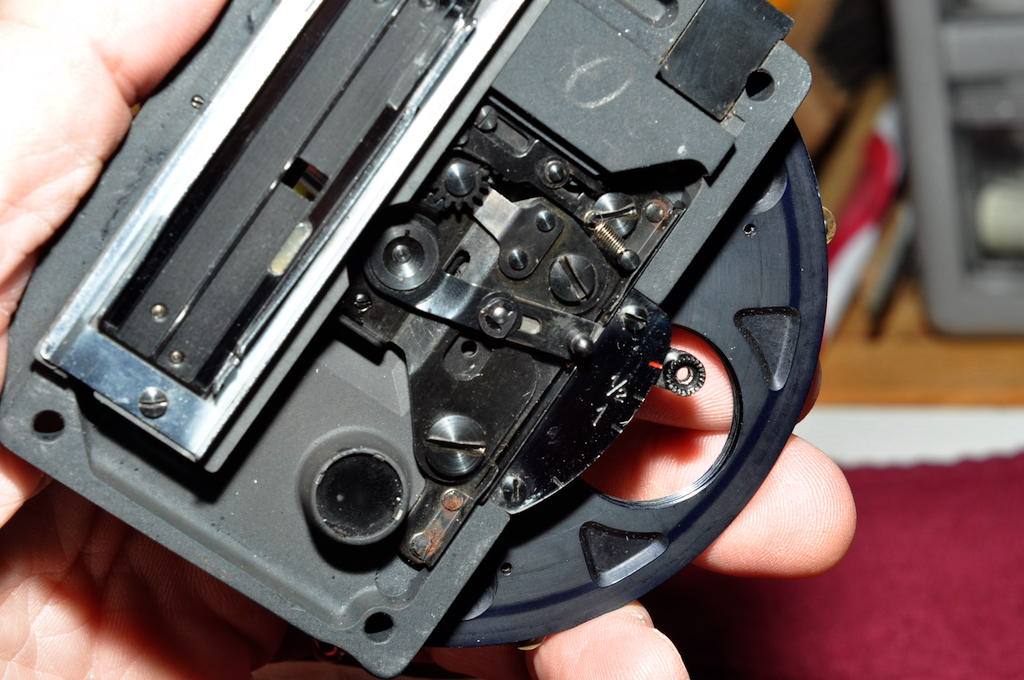

Inner workings are exposed. I remove the film counter to keep it from being damaged.



[Don H Marks]

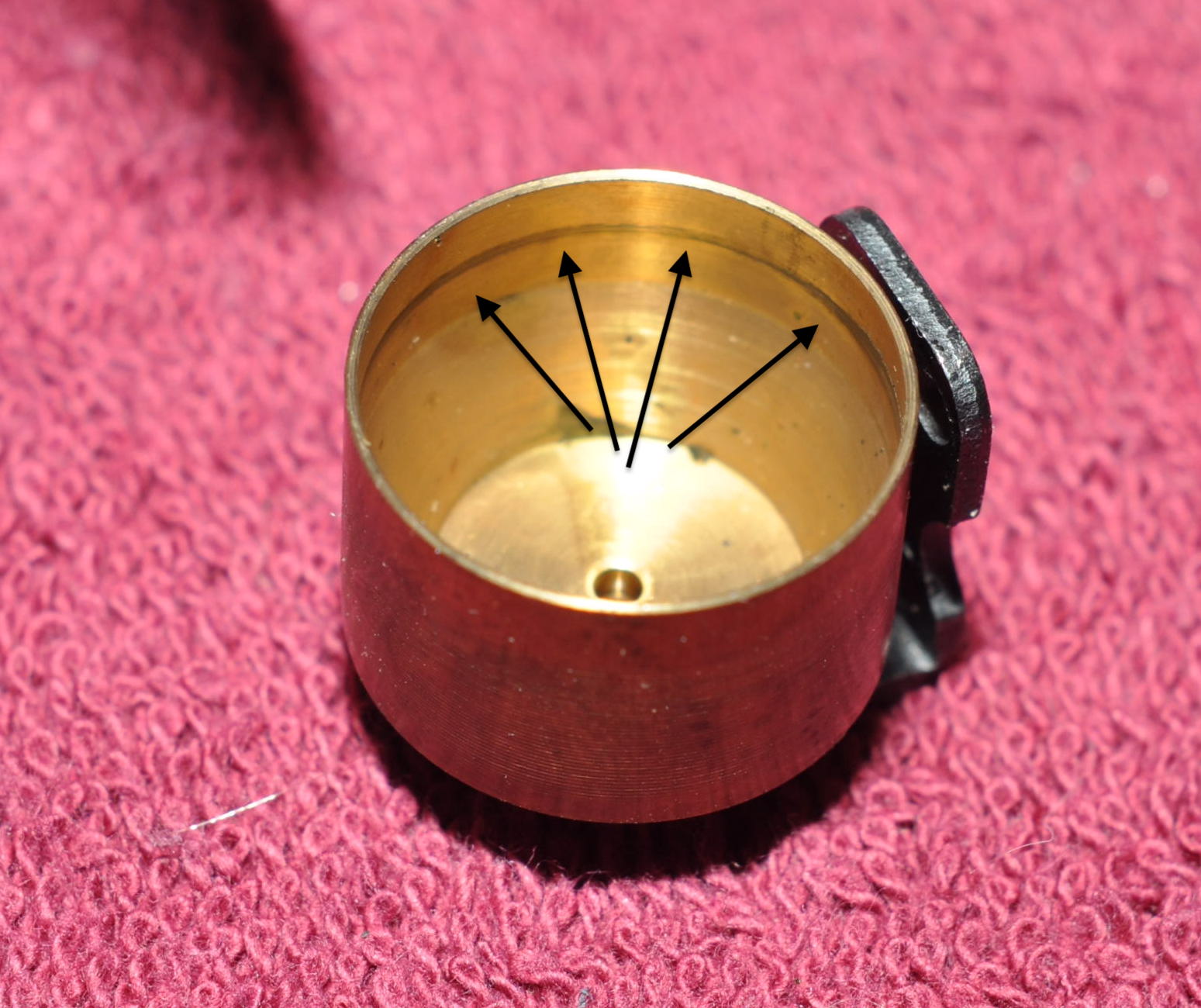

This camera has the older style governor bucket. It needed to be cleaned and re-lubed. There are a lot of opinions of what to do here. This is my own personal camera and I used some moly lube and it works for me.



[Don H Marks]

One of the sprockets was too high. I don't have the height measuring blocks, so I did some trial and error until it loaded smoothly.



[Don H Marks]

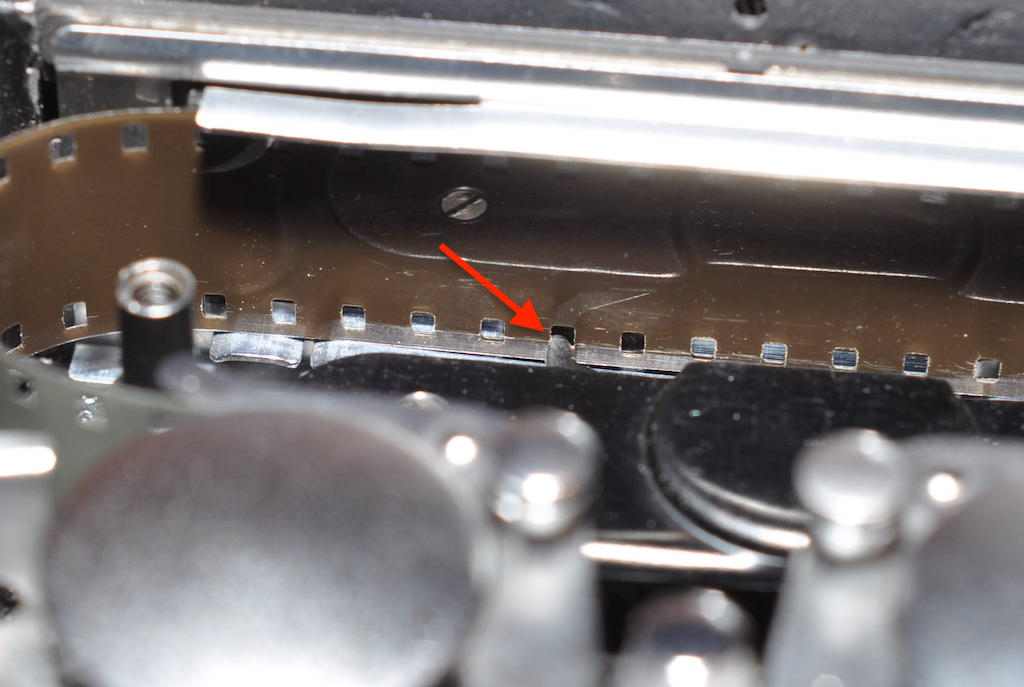

I don't have the gauge for the claw. I used a piece of film. The claw was too low so it was bent up a touch.





[Don H Marks]

I cleaned various spinning parts with alcohol and then re-oiled and greased various things until it ran smooth. I did not take the motor out or take the spring apart.

After re-assembly, Wow! I never ran so smooth.

All ready for some 100ft loads,



[Don H Marks]

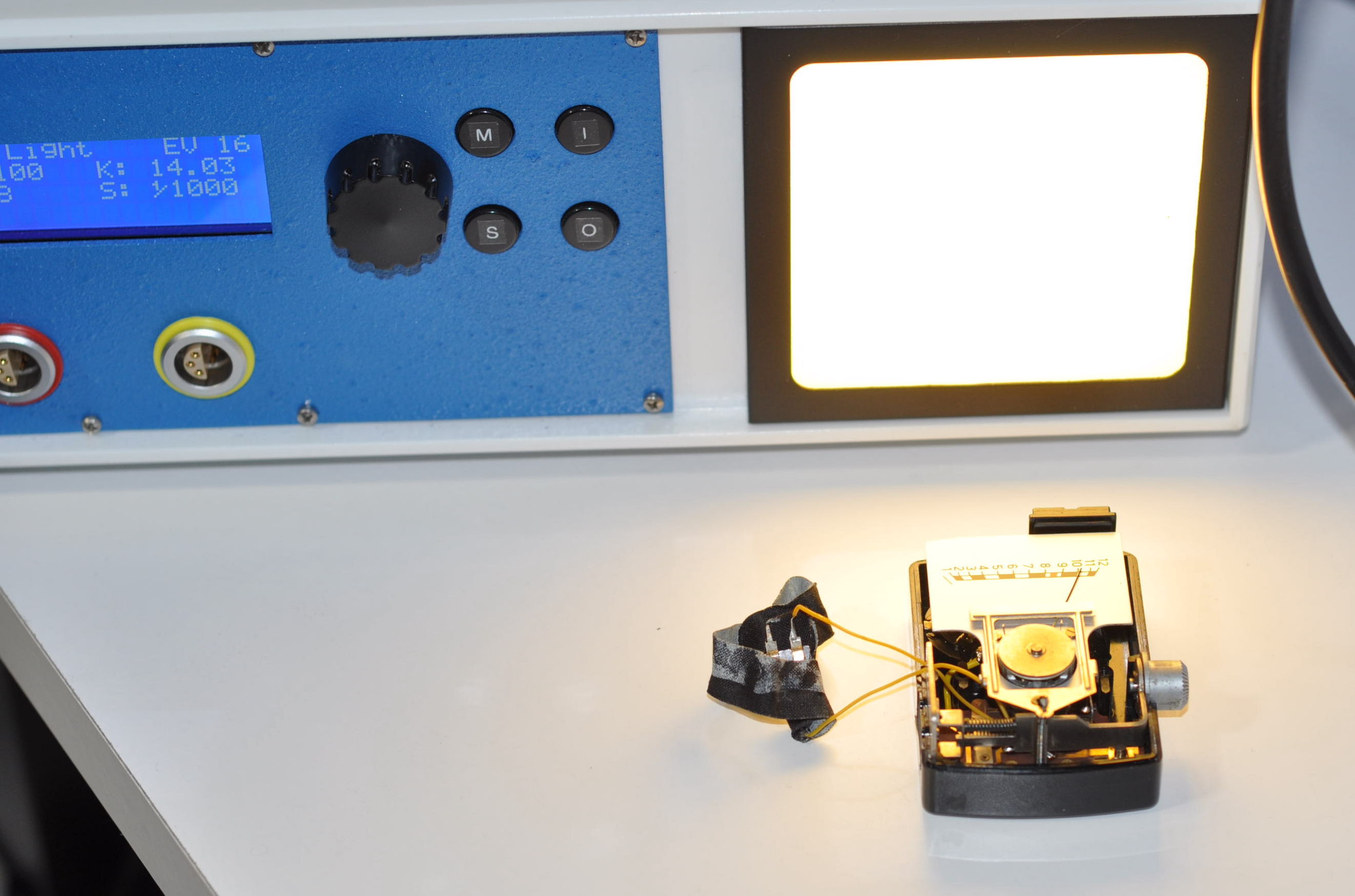

The light meter was calibrated to k = 14.03 with a zinc cell.

[Don H Marks]

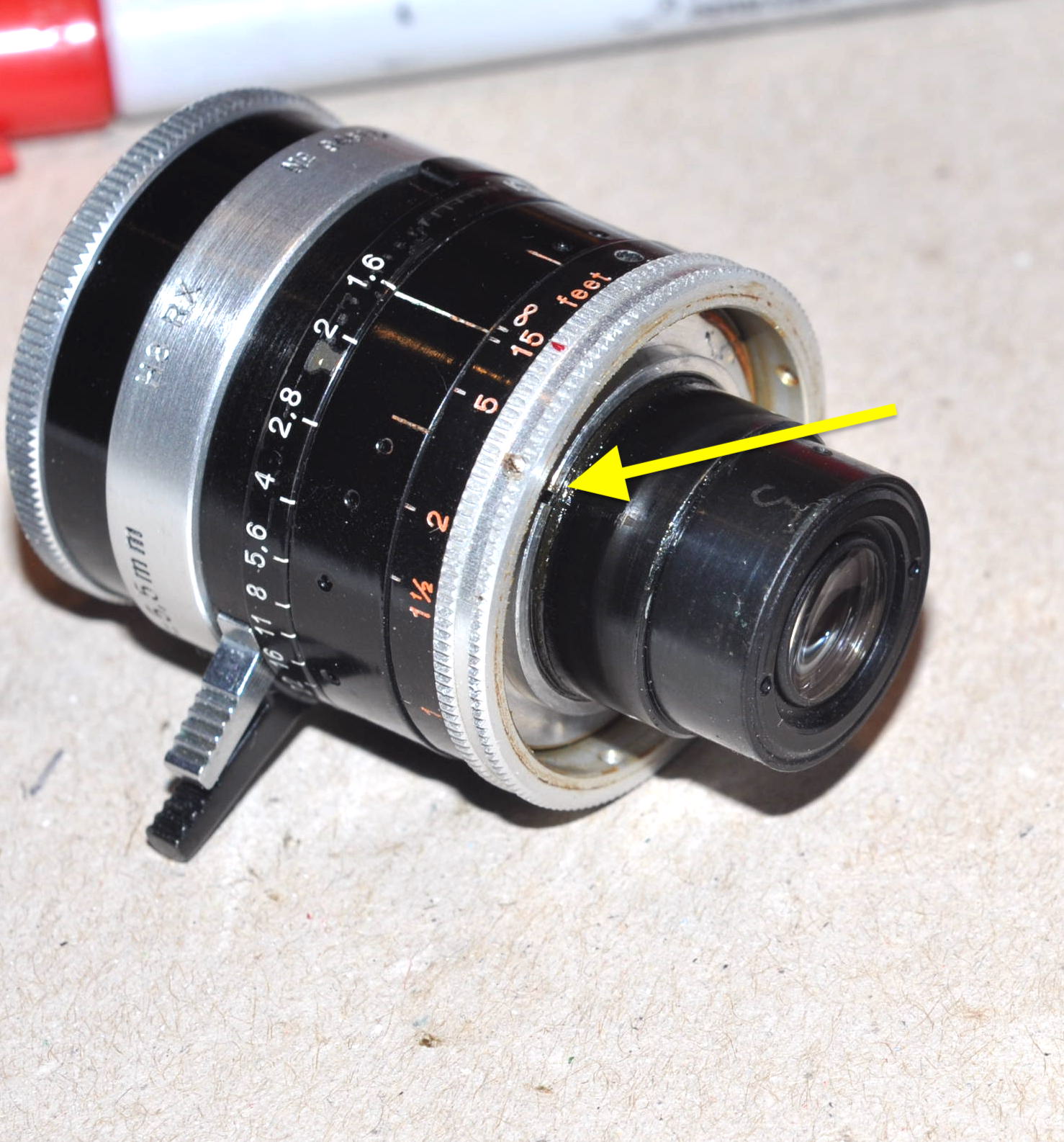

The stop-down lever of the 5.5mm lens was bent. I disassembled it and bent it back straight.



[Don H Marks]

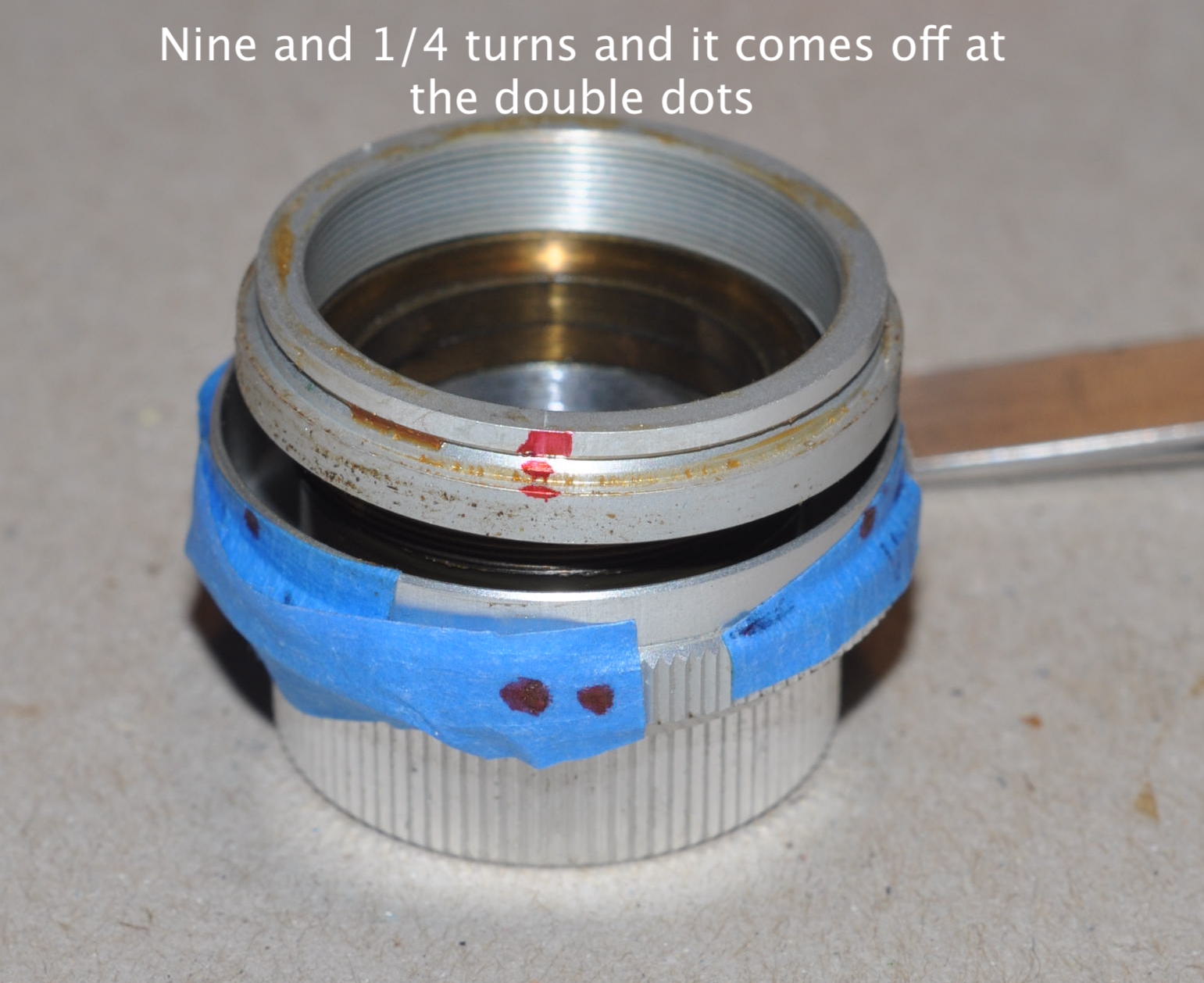

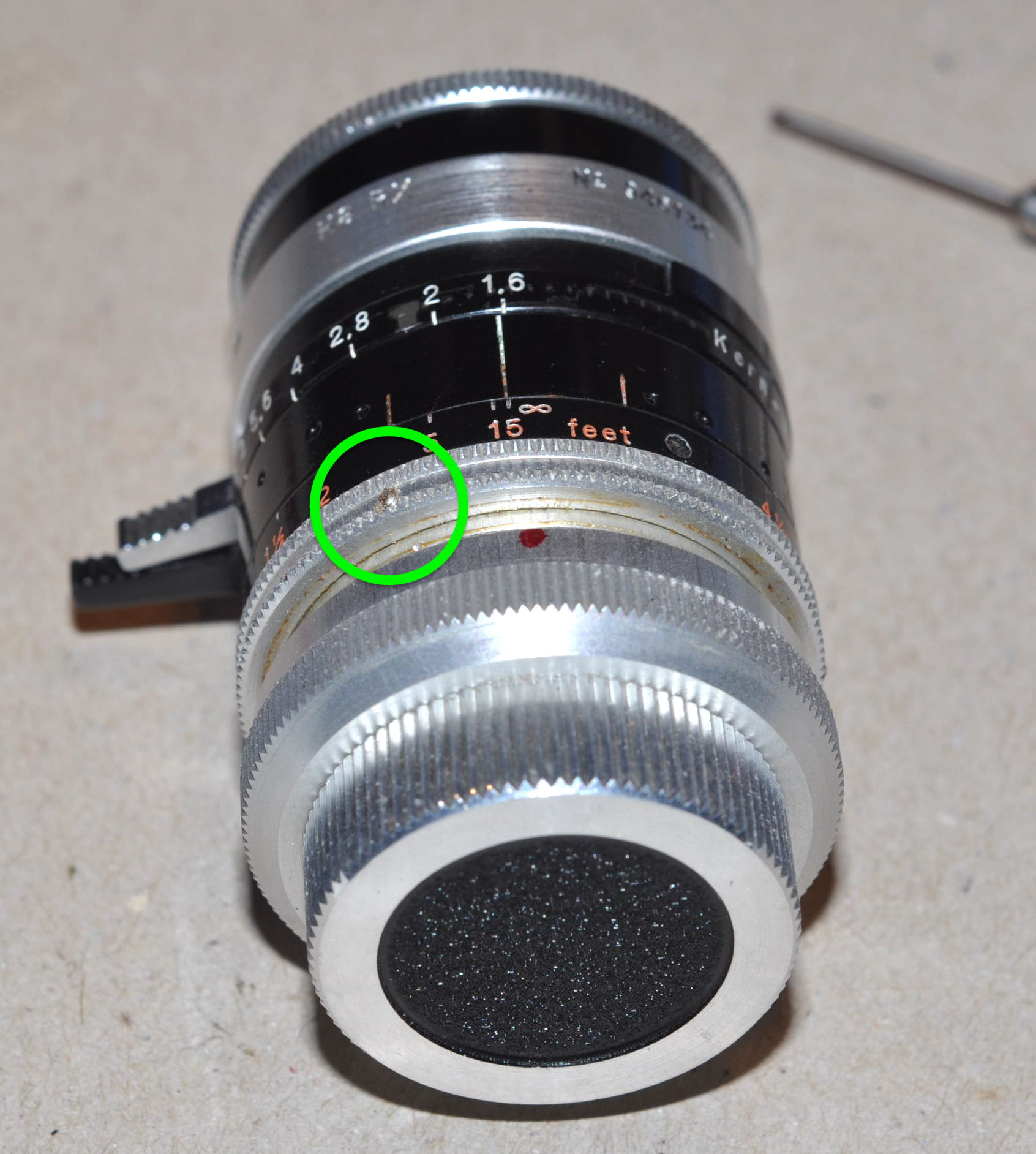

The helicoid was disassemble, cleaned and re-greased.
