final software version and how the speed presets are arranged etc. the front panel is not final on the prototype, the final panel has larger hole for the button so that one can use it with finger easily

longer video with some talking about what I am doing

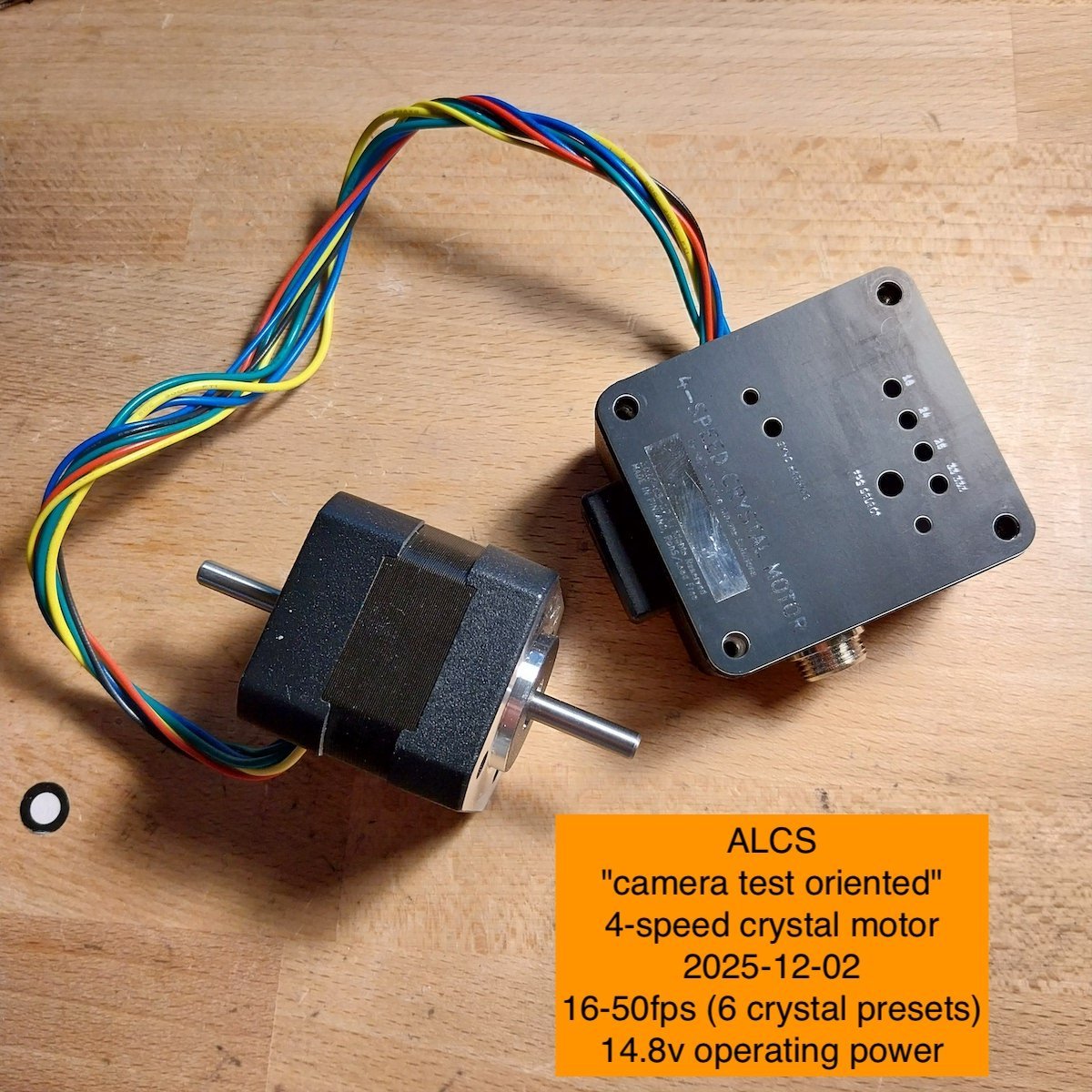

motor working with Kinor16, testing the crystal sync software version. this version was running about 0.015fps underspeed and corrected the difference in later versions. The final one is running very exact.

From the ebay pics it indeed looks like a extra crystal speed controller. Custom made with only couple of them made from the looks of it, just a project box with the panel and selector added. New external controllers for similar use can be made no problem, just need the info about how many pulses needed per frame (to calculate the needed signal frequency in Hz for each framerate) and the signal level needed (most old equipment has either 5v or 10v logic level)

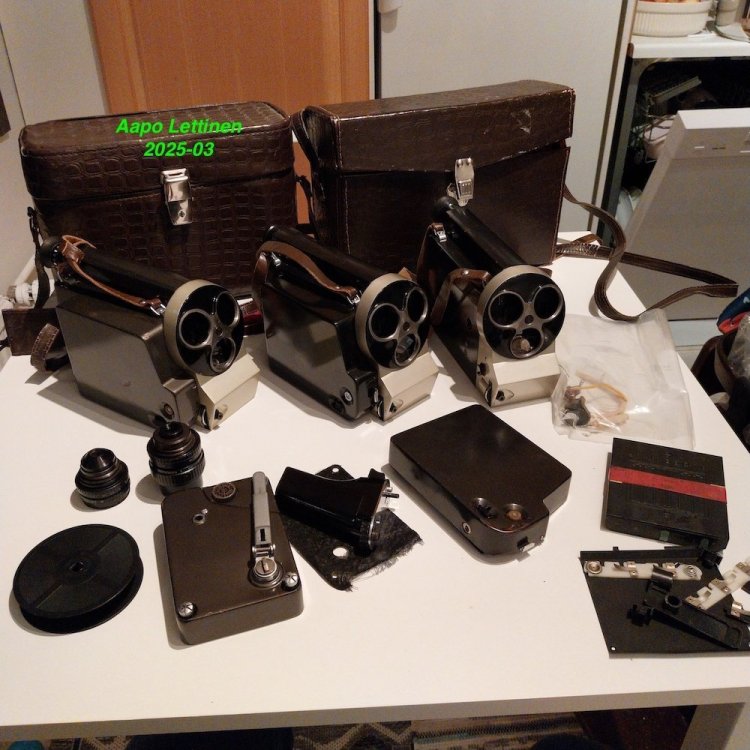

1.4mm sounds like a casting/machining tolerance error considering that the main body is separate from the bottom of the camera where the thread is and they have likely manually drilled and tapped the thread. Surprising that it is not more off than a mm or so. it is likely that it will vary a tiny bit from camera to camera at least if different production batches but I guess would be within a mm from the target still. sounds like it is intended to be on dead center and if it is less than 2mm off it is a pretty good result I think considering that it is not possible to exactly accurately mount a screw either because they need to have some play to be useful and most screws are made with similar tooling than bolts meaning they are not exactly identical and the thread may be slightly off centre or have other variance

tried to measure but it is very difficult due to the camera not having any right angles to reference to close enough to the thread. On my camera it seems to be pretty close to the optical axis but can be couple of mm off. one method for measuring would be to have a line laser which is pointed so that it hits the center of the lens mount cap and the centerline of the attached 15mm rods at the same time and then seeing where it lands on the bottom of the camera. another method would be to 3d scan the front and bottom of the camera body with appropriate marks on the center of the lens mount and the center of the rods and if possible scan the backside too to get the centerline of the gate. then check from the 3d model how far off center the thread is from the common centerline of those. did you get the camera body already? I think you need to get some kind of 3d scanner and 3d printer in any case if wanting to design accessories for it. but if you only have the printer and not 3d scanner, you could print out a "measuring rig" which mounts to the rods and has a marker to precisely tune it to the center of the lens mount (or lens cap). Then the "measuring rig" extends to the bottom of the camera and has some kind of reference bar/surface you can use to measure the distance between the optical centerline and the actual tripod thread. OR you can just make the accessory first and then mount it and check if it is off and by how much. I sometimes do this if in a hurry and there is budget to make extra test pieces. Just guess the offset first, then make a test piece, mount it and measure how far it is off. if the possible offset is intentional it is likely some fixed amount of full millimeters so measure the approximate figure, guess to which direction the exact value is on the scale and then make another test piece with the guessed exact dimension. you may get it perfect on the second try or one extra version max. needed 🙂

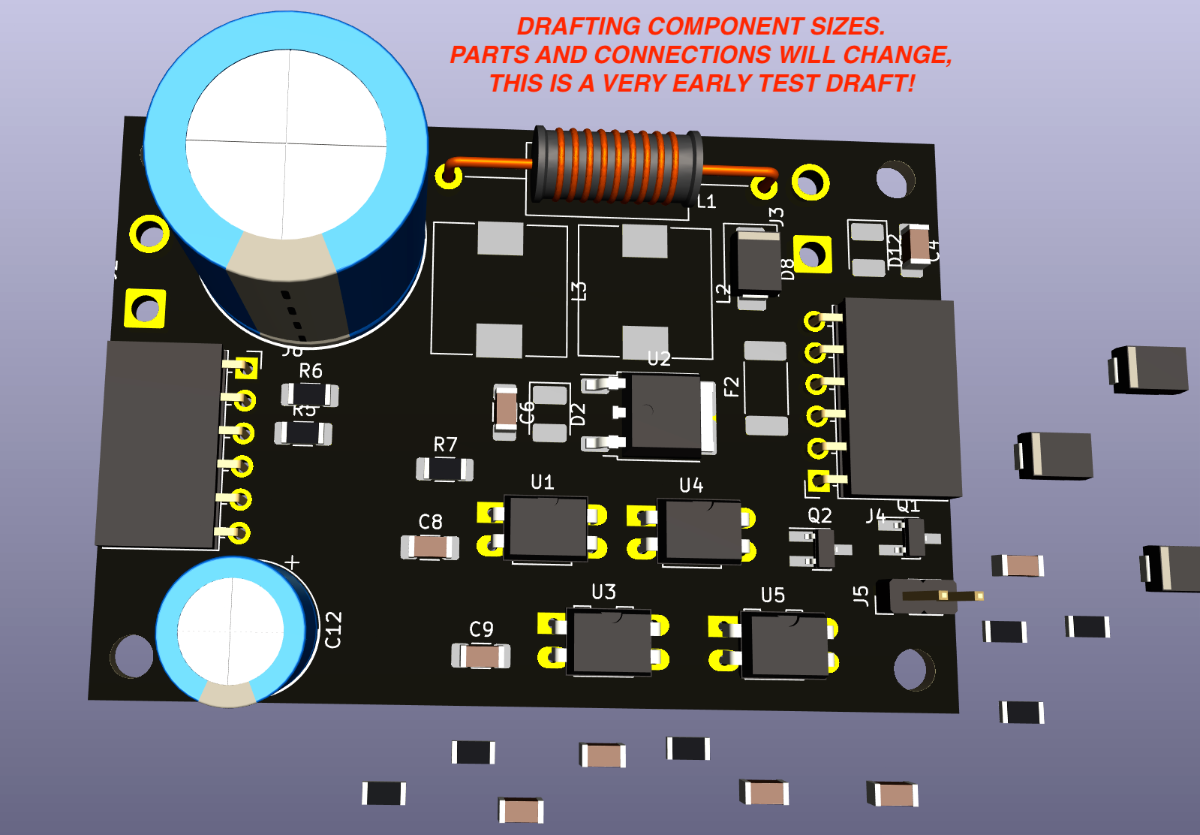

reflow soldering the 6-pin IO modules for my Eclair NPR and CP16R motor systems. this batch will mainly go to CP16R kits but there will be one or two spared for NPR motors 🙂

small video of the soldering process

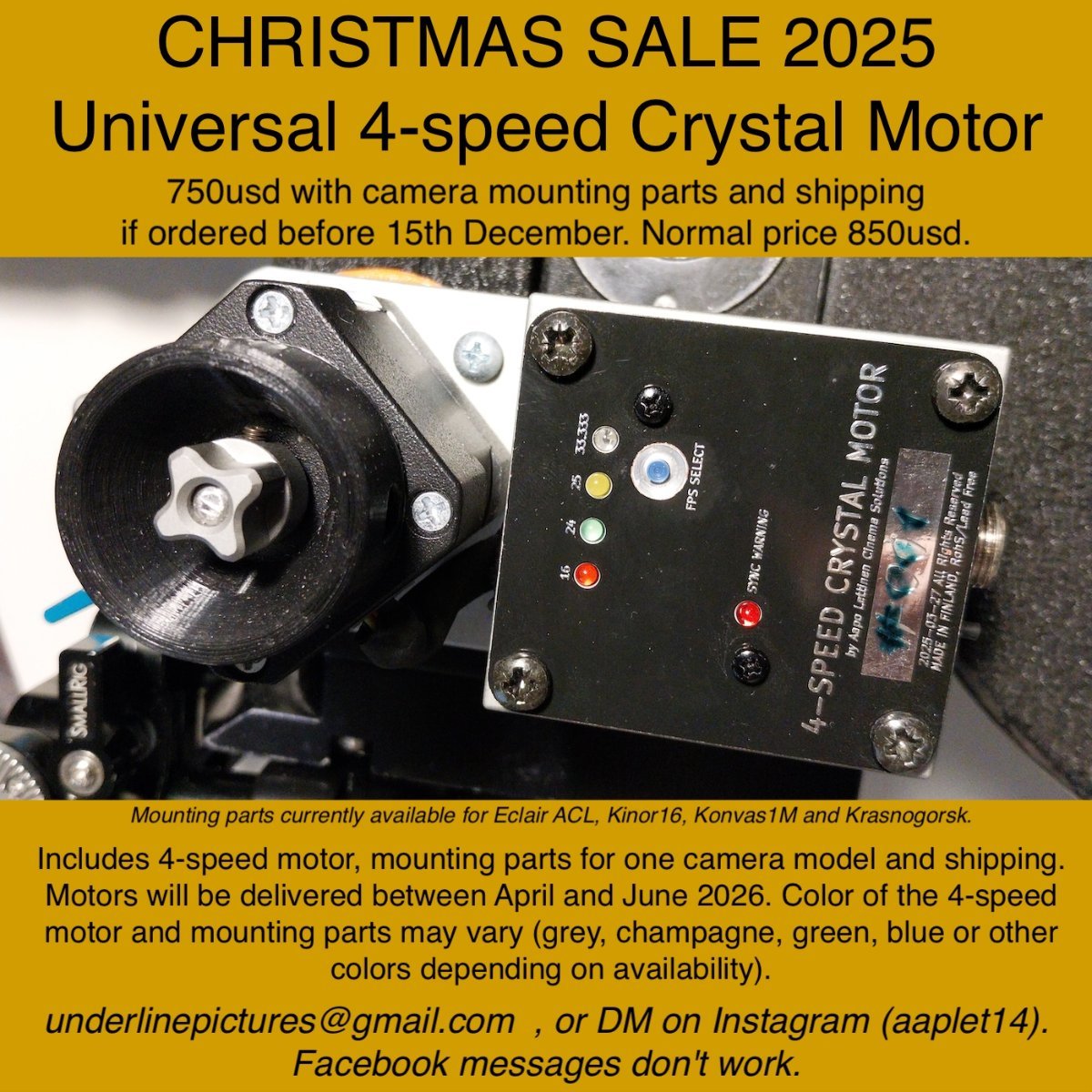

Testing the prototype unit with Kinor and fine tuning the software for best stability and response. Assembling the final motors later this week but will need to test the software with ACL camera too before can lock the final version and fully assemble all the motors in the batch

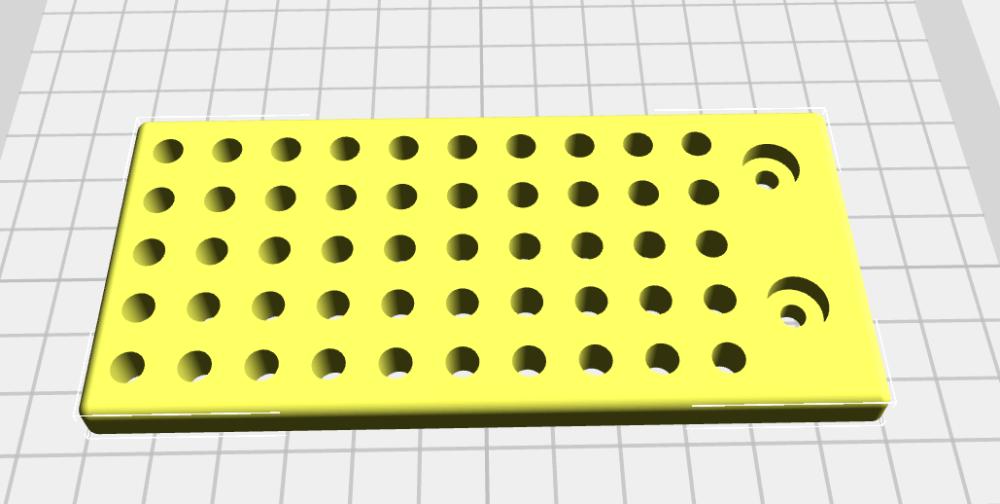

soldering the IO modules for the July batch of cp16r boards. Making 8 boards so there is the required 6 for the cp16r kits and two extra if there is soldering errors etc. and if those extra ones are fine too will use them later for other kits or Eclair NPR project.

and of course I have a video too! https://www.youtube.com/watch?v=lxn50cdSLLU&list=PLXvIUtmF3OxsCOCdTi64M6i0LcuOxIrdj&index=3

short circuit testing the IO module! if you are interested about some more detailed explanations and thermal imaging stuff then would be worth to watch https://www.youtube.com/watch?v=h1HIezIFwLY&list=PLXvIUtmF3OxtXFJWzSw8QLiw7tE6wisO_&index=1

finessing the vibration reduction mount design now. all the other inner mechanics are ready and the prototype is using the final electric motor type now. just fine tuning the design of that grey rubber-like polyurethane ring which reduces motor noise to get the shape optimal. This assembly can already turn the camera and now when I have the outer shape and dimensions of that grey shockmount ring it is possible to continue designing the outer covers of the motor and the final circuit boards which go underneath the shockmount assembly.

the new magazine uses normal Kodak aluminium daylight spools for both feed and takeup so there is no need to rewind film. just load a factory 100ft roll and takeup is on similar 100ft daylight spool. people were worried about the availability of original 200ft A-minima spools so I will skip that original plastic spool system entirely and make the magazine use the boring common 100ft aluminium spools everyone else uses including the Bolex and K3 people 🙂 ---------------------- if needing the 400ft magazine version there is very limited time window for ordering, need to know in July2025 if it is needed and partially paid for in early August so that I can start making it at the same time than the 100ft version. If missing this time window the possibility to make 400ft is lost or even in the very best case someone would need to send their own camera to me for 3 or 4 months for additional testing and design work if losing this possibility to develop the two mag versions side by side

a short video about the aluminium casings and other stuff https://www.youtube.com/watch?v=Gl5IMaj5WIY
