Webster Colcord

Margaret, I put my 2B up on some cheap Chinese-made sticks and it holds up fine. Very light and portable. I would not leave it unattended because you're definitely in the danger zone on the amount of weight, but if you're standing next to it anyway and you need to get in and out of the location all on your own body, this works. My Cinema Products flat base makes everything easier. You just have to be sure to keep track of any loose gears when you install it, and make sure that the belt in the base is not worn out. - Webster

Boris, You got a nice package there. I'm a little jealous of your BNCR mount! Good Arri standard-mount lenses are a bit difficult to find and they're not cheap. I just picked up this old Pan Cinor 38-155 and got it cleaned up by Simon Wyss. Really looking forward to shooting with it. The flat base is a Cinema Products sync motor, which runs off a 16.8V battery belt.

Stefan, do you still have an Eyemo with the spyder turret for sale? - Webster

I wonder if the first photo below could be of the setup in question? Also, in watching the behind-the-scenes footage it seems like their camera gear is relatively spartan. They use this little crane/dolly combo for everything. Can anyone tell me please what kind of little crane this is?

Don, I have a motor/Filmo combo with the exact same issue. Something in that clutch/shaft area isn't working.

The legendary and humble Jaakko Kurhi happens to live about 45 minutes drive from me. I have taken him a couple of Bolex' for maintenance, and one of his old Animation Controllers for repair, but recently he told me that he is officially retired. He leaves his site up "for informational purposes" as he says. He let me take this photo of him in 2018 when I brought in a camera. At the time he was working on an optical printer using some of his remaining parts stock: Google photo link So sadly, that's one less bonafied Bolex expert available to the world.

Pam Smith is selling one from, I think, France on Facebook.

This is maybe a better example:

Oh shit. I didn't know something had to be done. Oops.

@Steve Dunn I may have been shooting my example with the 10mm non-preset version, I'm not sure. I have one of each. If so, according to the info above about the difference in the two versions of the lens, that might explain why I have more vignetting in my footage.

It does cover Super 16, but like Volker said, there's a little bit of vignetting at the corners. This was an impromptu piece that I shot using a Switar 10mm (the preset version, if I recall) and a Switar 25mm. FYI, the levers tend to get broken off from the preset Switar 10mm :

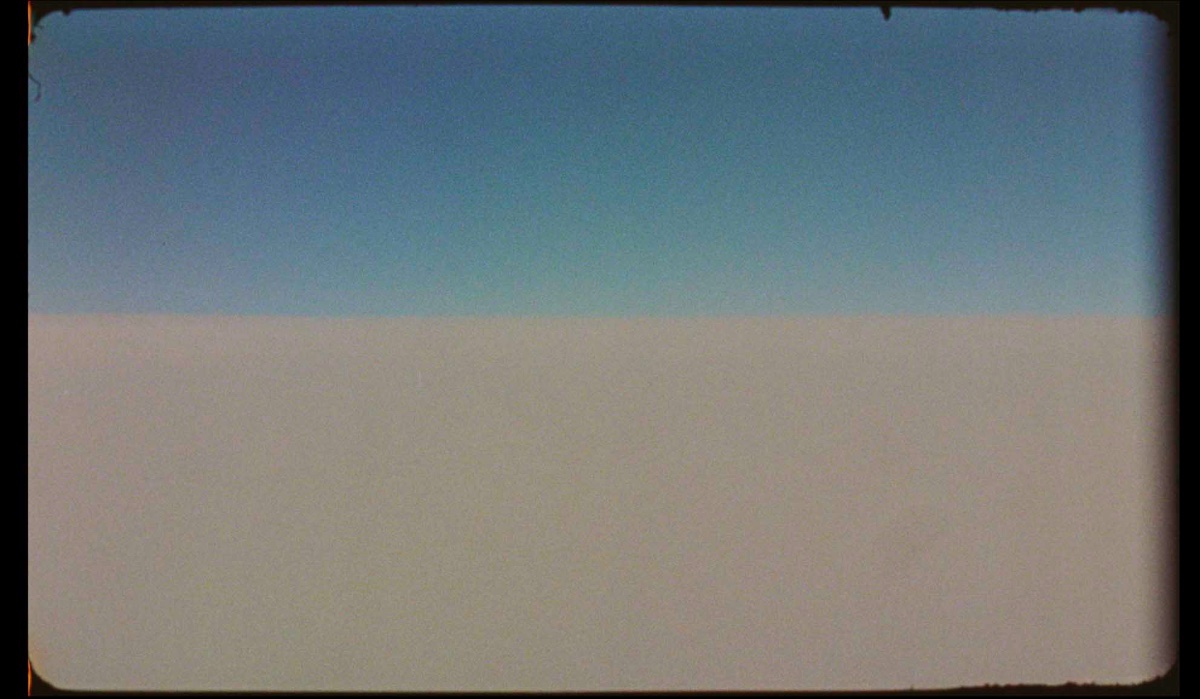

Here's a couple amateurish Ultra-16 examples from myself, shot with a cheap Revere springwind camera with a widened gate. The first example is cropped and heavily stabilized: The example below is uncropped. Unfortunately when machining out the gate, a tiny burr was created and it's scratching off a bit of emulsion, which is building up in the gate. You can see edgecode between the perfs on screen left.

What a gorgeous, strange film! Beautifully shot.

Thanks for the link Simon! It reminds me of the Auricon gate with its bearings that help stabilize the film. I'm still dubious about the steadiness of the CKS, though, as the films that I have been getting scanned are mostly 2R and I see registration issues. Do you think it's odd that the film is sandwiched against itself as it passes thru the single sprocket on both the feed and the takeup side? Also, Simon, do you have any experience with the Eumig C16R? It seems to have the same problem as the Beaulieu R16 & Filmo, in terms of the miniscule base for mounting. I haven't worked with one though, I'm curious. Sad that it's a proprietary lens mount.

Fabrice, I'm loving this topic and I'm so glad you started it, and made a good case for the Webo, a camera which I have long been curious about. I have dabbled with shooting through an anamorphic lens, but didn't want to spend a lot of money. So I picked up this giant inexpensive projection lens and rigged up the Bolex on a cheese plate, with rails and a big mount for the front lens. It works okay and I have even handheld this rig! This is just to show that anything is possible with the right rigging components. You also mentioned the Kodak Cine Special. I have been scanning film shot with a Cine Special from an old filmmaker friend and am finding lots of unstable footage. Recently I verified with someone else, that with their Cine Special system some magazines were more reliable than others - the claw mechanism is part of the magazine and it doesn't seem to be very well made.

Seems like there's some information missing. If they wanted to shoot two or three perf, why didn't they just get the existing pressure plate anodized black? There must be more to that part of the story. Looking forward to viewing the movie on Netflix!

Some cool tricks in there. The first macro shot where the hand grabs the bottle, and one later close-up has a lot of chromatic aberration - I have an old Pan Cinor that does the same. Also I think there's many shots where the camera is shooting into mylar that's being wiggled? Maybe one shot with vaseline around the edge of the lens, or a hole cut in a plastic bottle?

Sorry for the lengthy topic wording. I didn't want to call it "Camera Movements" as that would be mistaken for something else. I'm sure this has all been covered in the forum previously, but perhaps not under one topic thread (I searched). From what I have learned over the years, there are four basic types of camera movements (film transport mechanisms) in professional cameras with many variations: 1. pull-down claw - usually driven by a cam, variations include the Bolex' "trailing claw" and the Auricon's claw with bearings in the gate which have a stabilizing function. 2. claw with pins mechanically linked - does this have a better name? I'm thinking of the "Mitchell-type" mechanically linked pull-down claw with registration pins. In the J.M. Wall camera this was designed to all fit in a compact module that could be taken out of the camera easily, the Arri BL had a similar design. The Arri-S and Milliken come to mind as other variations with a mechanically linked registration pin. 3. fixed pin shuttle - used in the Bell & Howell 2709 and animation cameras, also used in optical printers 4. prism & drum - specifically for highspeed cameras - please correct me/mansplain-away!

I just got my inaugural test roll back for a Gic 16 - and my first time shooting the new Ektachrome. Lots of problems, and have since sent off the camera to Mr. Wyss for repair. The take-up was inconsistent, so every 5 feet it would back up and (since there's so little room in there) jam. So I had my changing bag with me and would pop the camera into it after each 5 ft, and manually adjust the take-up. Unfortunately, it turns out that this changing bag was not 100% light-tight! It was also an extremely bright day, so I'm not too surprised. E100D, processing by Dwayne's, 2K scan by Nick Coyle. Lens was an Angenieux 17-68 with side finder. Camera's speed is supposed to be 16fps but I have adjusted the speed in the edit to 15fps and it feels correct. It's really just a novelty camera, cheaply made but fun and *tiny*.

Arthur, I really love the "Omni 16" option that you show on your site. I'm wondering - is it the same price as your Super 16 conversion and does it involve re-centering the lens just like the Super 16 conversion does? - Webster

I shot a roll for fun with my Filmo Superspeed, 128fps on a spring motor. No editing. Processing and scan by Cinelab Boston Lens: Angenieux 17-68 with dogleg finder, Skylight filter Stock: Kodak 500T 7230

@Frank Wylie Do you know if it's possible to adapt Mitchell mount lenses to a J.M. Wall mount, or vice-versa? I know that both use screws, but how different are the mounts? Sorry, my cameras are in storage at the moment so I don't have easy access to compare. I know the flange focal distance is *almost* the same from the Mitchell standard to the "new" Wall.

Maybe someone can answer on a related topic, as I found another one of these lenses - is this what it looks like, a dual mount for a BNC and a standard? It's pretty obvious that the larger four flanges (one of which, looking at another photo that I didn't upload here, has a notch) is the BNC mount, but I am not quite sure what I'm looking at with the smaller mount on the end, with what looks like screw holes (I have not bought this lens yet and tried to fit it to anything).

@Pavan Deep was selling a couple of them

Whatever happened to your lens, Patrick? I saw one of these for sale on Ebay about a year ago, dogleg finder but specifically for a BNCR, it said.
